Galvanized Outdoor Decorative Welded Wire Mesh Garden Fence 3d Curved

Outdoor Decorative 3D Curved Welded Wire Mesh Garden Fence​

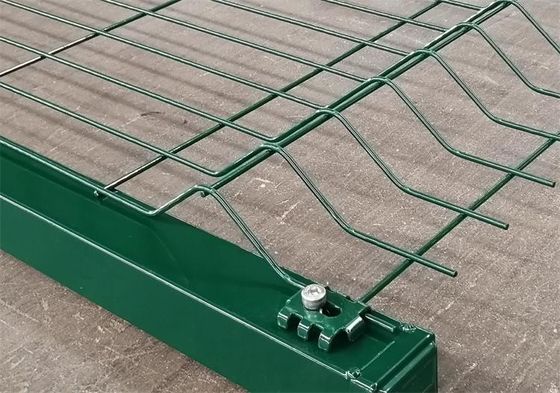

3d curved welded wire mesh fencel is a type of welded wire mesh which has V-shaped strengthen bending curves. It is made of high quality low carbon steel wire, galvanized steel wire,metal column connected. The surface treatment of Triangle bend fence includes: hot-dipped galvanized, PVC coated, powder coated, polyester coated.

Main market: Singapore(we have branch there), SaudiArabia, Indonesia, USA, Israel, Australia, South Africa, Mauritius, Morocco, UAE, Portugal, Russia, Malaysia, Bangladesh, and so on.

specification:

wire diameter;0,2-4mm
apetue: 1/4-4
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.

Panels

• The welded mesh panels have a length of 2000 mm,2200mm,2500mm and are available in a range of heights from 630 till 2430 mm.
• The panels have vertical barbs of 30 mm that can be placed at the top or at the bottom.
• Mesh sizes are 100 x 50 mm ,200x50mm, 75x100mm
• Wire diameter: Horizontal 3,4,5 mm, Vertical 4,0 mm

Coating

• hot dipped galvanized
• PVC-coating,
• hot dipped ,then pvc coated.

Colours

• Green RAL 6005 standard. RAL series colour is available on request.

Posts:

1. peach -shaped post: 100x70mm

2. square post: 60x60mm, 60x40mm

3. round post: 48mm, 60mm.

3. fittings

1) steel clips or plastic clips

2) plastic anti-rain caps

3) base plate if need.

3. fence post

Post Installation of wire mesh fence

1> Straight post from top to below and bury it directly to the earth.

2> Post with a steel base plate, fixed with expansion screws on hardened ground.

What's Application of wire mesh fence?

Widely used for prevention for pool, road, highway, railway, garden, airport, residential district, seaport, feeding and husbandry, military base, etc.

Post Style	Post Size
Square/Rectangular Post	40x60mm
	60X60mm
	60X80mm



2. Fence with peach post

Post Style	Post Size
Peach Post	50x70mm
	70x100mm





Features

highway fence products are beautiful, durable, non-deformable, and fast to install. It is an ideal metal fence product. It can be made into a permanent mesh wall or can be used as a temporary fence. Different column fixing methods can be achieved. It has the characteristics of anti-corrosion, anti-aging, anti-sun and weather resistance. For the anti-corrosion form, electroplating, hot-plating, spraying and dipping can be used.

Application:

fences are mainly used in parks, zoo fences, campuses, field boundaries, road traffic isolation, and temporary isolation zones. The specifications of highway fences are various, according to different terrain, different drawings are designed, and the production is evaluated according to the drawings.

We can produce according to customers' drawings.

FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: It will take about 10-20 days after get the deposit, urgent order can be discussed.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance
