Product Details:
Payment & Shipping Terms:
|
| Material: | Black Wire, Spring Steel Wire, 65mn | Aperture: | 0.8 - 8 Mm |
|---|---|---|---|
| Size: | 1.5mx1.95m | Install: | Hooked |
| Surface Treatment:: | Galvanized Or Painted | Mesh Size: | 1mm - 100mm |
| Hole Type: | Square, Rectangular And Long Slot. | ||
| High Light: | hooked vibrating wire mesh screen,crimp stainless vibrating wire mesh screen |
||

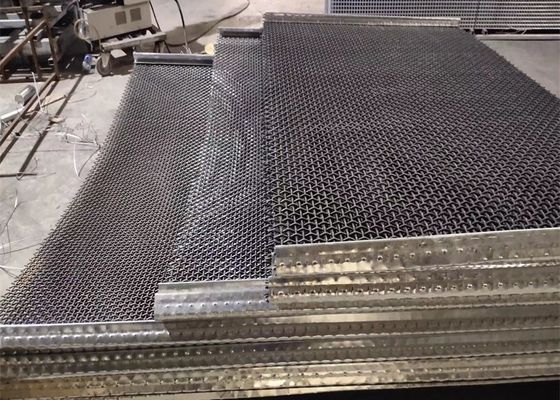

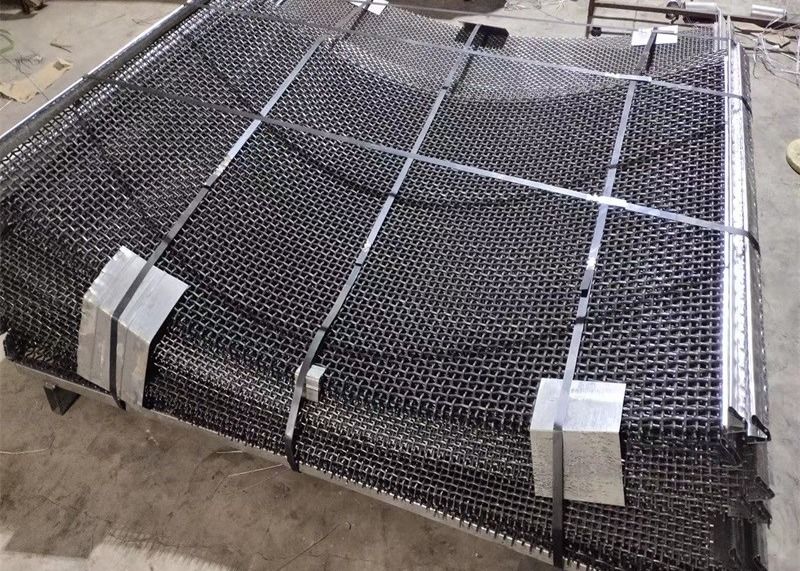

High Tensile 65mn Steel Vibrating Screen Crimped Wire Mesh
Crimped Wire Mesh is also known as wave woven screen. According different materials can also be called wire crimped mesh, galvanized crimped mesh, white steel crimped mesh, black steel crimped mesh, stainless steel crimped mesh, wire crimped mesh, copper-clad steel crimped mesh. The use of different gin mesh can also be a mine sieve gin mesh, piggin mesh, barbecue gin mesh, granary gin mesh, decorative gin mesh. According to the shape can also be called a knot crimped mesh, wrapped edge crimped mesh, crimped mesh. Ginning mesh is a square mesh product with a variety of uses, which is woven by the ginning machine and then through the new mesh machine to different materials and different specifications of metal wire.
Heavy duty crimped wire mesh are the most widely used screens in the aggregate and mining industries, due to their high screening area, precision and price ratio. The Crimped wire mesh (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped, flat mesh, etc.).
Crusher screen wire mesh is also called vibrating screen woven mesh, crusher woven wire mesh, quarry vibrating screen mesh, quarry screen mesh etc. it is wearable resistance, high frequency and longer life. Manganese steel vibrating screen mesh is made of the high tensile manganese steel, and the most widely used and common is 65Mn steel.
Features: Weaving with pre-crimped wire, offering strong structure, substantially woven, durable, uniform cell, heat-resisting, corrosion-resisting, abrasion-resisting
Crimped wire mesh shape: v-shaped, u-shaped
Angle: 30 degrees, 45 degrees
Heavier woven wires must be pre-crimped. The material remains stable and rigid after the crimping process. Our pre-crimped woven wire mesh is available in intercrimp, lock crimp, plain weave and flat top woven styles, and it is ideal for architectural applications.
| Material | Black wire, spring steel wire, manganese steel wire and stainless steel wire, as your request |
| Surface treatment | Galvanized or painted |
| Wire diameter | 0.71mm - 12.5mm |
| Mesh size | 1mm - 100mm |
| Hole type | Square, rectangular and long slot |
| Weaving type | Plain weave, Pre-crimped, Flat top, Intermediate crimped, Lock crimped |
| Connection/Hook type | Bending,Welding,Metal sheet hook (C type or U type) |
| Wire Dia(mm) | Opening(mm) | Mesh | Weight(kg/m2) |
| 4.0 | 30 | 0.75 | 6 |
| 3.2 | 20 | 1.1 | 5.6 |
| 2.6 | 15 | 1.44 | 5.7 |
| 2.0 | 10 | 2.12 | 4.2 |
| 2.0 | 8 | 2.54 | 5.1 |
| 1.8 | 6 | 3.25 | 5.3 |
| 1.6 | 3 | 5.5 | 7.1 |
| 1.4 | 4 | 4.7 | 4.6 |
| 1.2 | 7 | 3.1 | 2.2 |
| 1.2 | 6 | 3.5 | 2.5 |
| 1.2 | 3 | 6 | 4.4 |
| 1.0 | 2.18 | 8 | 4 |
| 0.8 | 1.72 | 10 | 3.2 |
| 0.7 | 1.84 | 10 | 2.5 |
| 0.6 | 1.21 | 14 | 2.6 |
| 0.5 | 0.9 | 18 | 2.3 |
| 0.5 | 0.77 | 20 | 2.5 |
| Other specifications can be customized, can be made into rolls or sheets, the width can be up to 4m | |||
All types of high-quality Screen Mesh can be manufactured, kindly let us know your request.
1. Mesh type
2. Material
3. Aperture
4. Length and Width
5. Quantity
6. Your other requests
Talk with me you do not need to pay money. I am happy to add value, even if we never work together. You tell me what works for you. I'll make it happen. Simple as that.
Advantages:
1) High mechanical strength, large carrying capability
2) High abrasion and chemical corrosion resistance
3) Excellent vibration and impact resistance
4) Large screening area
5) long service life
Our woven wire mesh is manufactured with a stringent wire opening tolerance of ±3%.Wire diameter is available in the industrys largest variety of wire diameters from .047 inches(1.2mm) to .750 inches(19 mm) and open size from .125 inches (3.18mm)to 5 inches (127mm).
The weaving process is also crucial .Each screen is woven with an extremely tight tolerance to any type of movenment within the crimp or weave, preventing the wires from rubbing against each other and wearing prematurely during use.Thus a tight weave is produced every time,and the tighter the weave,the more durable the woven wire. So you get the strongest screen media possible every time you order.
Application:
Mainly used as screen mesh, it is widely used in many industries, such as mining screen, quarrying screen, the screen deck, screen wire for stone crusher, Classifying Trommel; Vibrating screen; Road construction equipment; The Asphaltum mix round equipment and the mine vibrating screens, chemical industry, pharmacy, machinery, protection, construction.
