Product Details:
Payment & Shipping Terms:
|
Material: | Black Wire, Spring Steel Wire, 65mn | Aperture: | 0.8 - 8 Mm |
---|---|---|---|
Size: | 1.5mx1.95m | Install: | Hooked |
Surface Treatment:: | Galvanized Or Painted | Mesh Size: | 1mm - 100mm |
Hole Type: | Square, Rectangular And Long Slot. | ||
High Light: | crimped stone crusher wire mesh,mine sieving stone crusher wire mesh,mine sieving mesh vibrating screen |

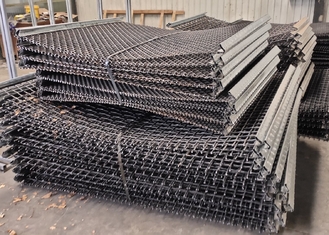

Factory Wholesale High Tensile 65mn Woven Crimped Wire Mining Vibrating Screen Mesh with Hooked for Coal Mine Industry
Other names: Crimped wire mesh sheet/netting/, heavy duty crimped wire mesh, pre-crimped wire mesh, Beautiful gridding wire mesh,
Material: iron wire, galvanized steel wire, or stainless steel wire.
Character: Weaved firmly, durable, opening equality.
Weaving Patterns: Weaving after crimping, double crimped, locked bending, flat-top bending, two-way bending, bending wave one-way compartment
General Use: Screening in mine, coal factory, construction and other industries.
Crimped Wire Mesh Uses: crimped wire mesh is widely used in mining, petroleum, chemical, construction, mechanical accessories, protective net, packaging net, barbecue mesh, sintering furnace network, hardware mesh, arts and crafts net, vibration screen with a mesh basket, food machinery, kitchen net, mesh wall, food, roads, railways, infrastructure, mesh, can be used for classification of solid materials, filter for liquid and mud filtration, etc.
Special use: Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting
of flour food and meat.
Width: 0.5m-12m
Material | Wire Gauge | Hole Size |
---|---|---|
Stainless (SUS 304#) | 1.2m/m~12m/m | 10mm - 100mm |
Hot dip galvanized | 1.2m/m~12m/m | |
Galvanized | 1.2m/m~12m/m | |
Customization Was Available |
1. Double Crimp Woven Wire
Used for medium to heavy wire in relation to screen opening size.
2. Lock pre-crimp mesh
Unlike plain crimped mesh, lock crimped mesh is characterized by straight sections of wire connected by a well defined bump at the wire intersections, such a manner to actually lock the wires together, offering further assurance of no wire movement. Our lock crimp wire mesh is good in quality and competitive at price.
3. Flat Top Woven Wire
Flat top is similar to the lock crimp, but all of its crimping is offset to one side of the material. This creates a smooth top surface-with no high points-as all wires are woven on a single plane. Its bottom side, however, has crimp bumps approximately twice the height of lock crimp bumps. Flat top was originally created to allow for the smooth flow of materials over the surface and provide a flat face for use as backer screens. Flat top is ideal for aggregate sizing and sorting, agriculture, filtration, and heat-treating applications.
4. Intermdiate Crimp Woven Wire
Used in coarse weaves of lighter gauge woven wire to provide greater stability, tightness of weave and maximum rigidity. Very common in wire mesh openings larger than 1/2" (12.7mm).
Name | Heavy duty wire Crimped Wire Mesh.Mine Mesh. Vibratingscreen mesh |
material | 65Mn,45#,50#,55#,60#,70#,72A, 304, 316, 316L |
wire | 0.8mm-12.7mm |
Opening | 2mm to 100mm |
Applications
Packing:
woven mesh screen is packed Inside with moisture-proof paper and other materials which doesn't affect the quality of product's surface,outside with wooden cases or wooden / steel pallets.
