Product Details:
Payment & Shipping Terms:
|
| Material: | Manganese Steel | Wire Diameter: | 6.0 Mm |
|---|---|---|---|
| Hole Shape: | Rectangle | Weaving Type: | Plain Weave |
| Technic: | Woven Mesh | Tensile Strength: | 800 - 1000 MPa |
| High Light: | wear resistant double crimped wire mesh,non slip double crimped wire mesh,painted stainless steel crimped wire mesh |
||

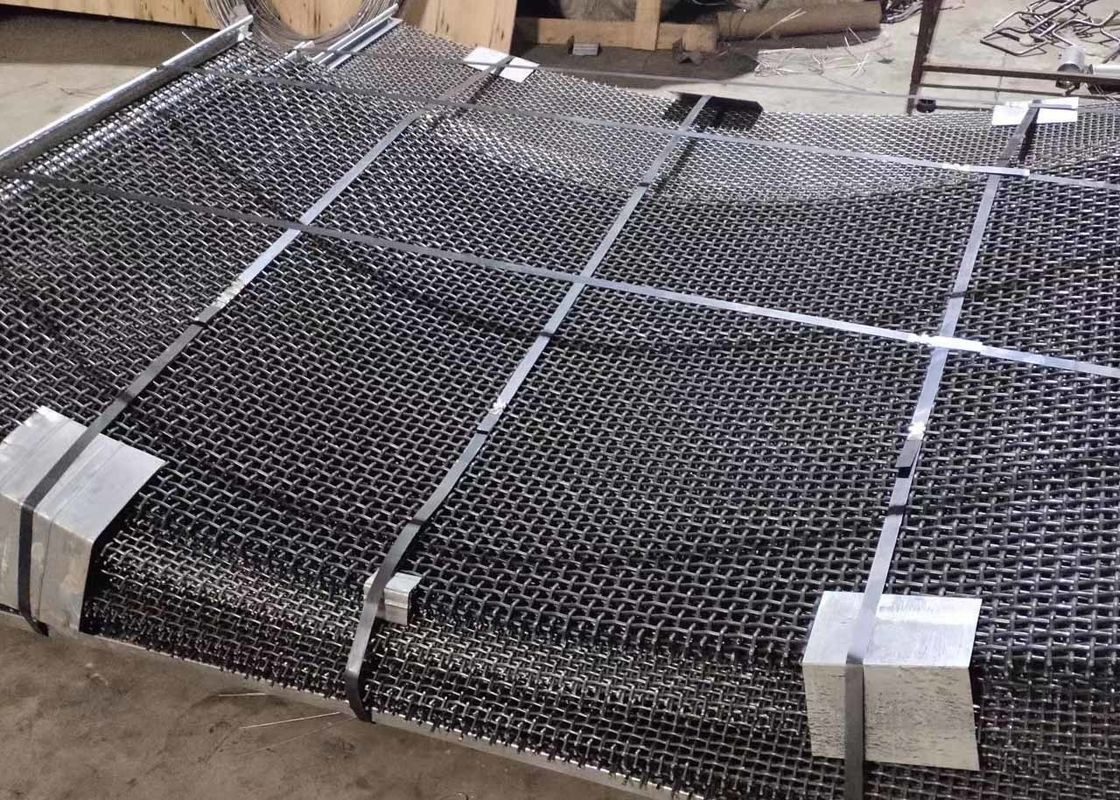

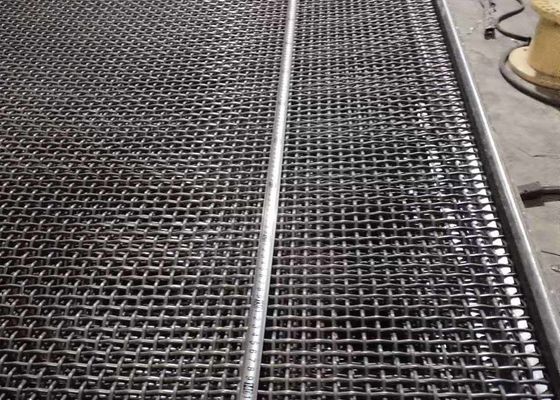

Wear-Resistant Non-Slip Woven Vibrating Crimped Wire Mesh for Mining
Crimped wire mesh is also known as pre-crimped wire mesh or plaited wire mesh.
Types of crimped wire mesh: lock-crimped,inter-crimped,double-crimped, flat top crimped,multi-crimped or plain weave.
Raw materials of crimped wire mesh: stainless steel wire, Manganese steel wire(65Mn), low carbon steel wire, copper wire, Titanium wire, etc.
Steel Screen Mesh for Crusher Machine, Stone Crusher Screen Mesh
Material: black wire, spring steel wire, manganese steel wire and stainless steel wire.
Surface treatment: galvanized or painted.
Wire diameter: 0.71mm - 12.5mm.
Mesh size: 1mm - 100mm.
Hole type: square, rectangular and long slot. Inherit'>4. Feature: Longer life, High adhesion, excellent efficiency of mechanical splice.
| S/No | Hole size | Thickness | Panel size |
| 1 | 0.5mm | 0.3mm | 1200mmx1500mm 1500mmx2000mm 1500mmX2470mm 1600mmX3100mm 1600mmx2550mm 1630mmX2550mm 1750mmx4500mm 1850mmx2070mm 2000mmx3000mm 2030mmX2050mm 2070mmx2470mm ... Customized size is available. |
| 2 | 1.0mm | 0.75mm | |
| 3 | 1.5mm | 1mm | |
| 4 | 2.0mm | 1.5mm | |
| 5 | 3.0mm | 2mm | |
| 6 | 4.0mm | 2.5mm | |
| 7 | 5.0mm | 3mm | |
| 8 | 6.0mm | 3mm | |
| 9 | 7.00mm | 3mm | |
| 10 | 8.0mm | 3mm | |
| 11 | 9.0mm | 3.5mm | |
| 12 | 9.5mm | 3.5mm | |
| 13 | 10.mm | 4mm | |
| 14 | 11.0mm | 4mm | |
| 15 | 12.0mm | 4mm | |
| 16 | 12.5mm | 4mm | |
| 17 | 13.0mm | 4mm | |
| 18 | 14.0mm | 4mm | |
| 19 | 15.0mm | 4mm | |
| 20 | 16.mm | 4mm | |
| 21 | 17.mm | 4.5mm | |
| 22 | 18.mm | 5mm | |
| 23 | 19.mm | 5mm | |
| 24 | 20.0mm | 6mm | |
| 25 | 21.0mm | 6mm | |
| 26 | 22.0mm | 6mm | |
| 27 | 23.0mm | 6mm | |
| 28 | 24.0mm | 6mm | |
| 29 | 25.0mm | 6mm | |
| 30 | 26.0mm | 6mm | |
| 31 | 30.0mm | 6.5mm | |
| 32 | 32.0mm | 7mm | |
| 33 | 35.0mm | 7mm | |
| 34 | 38.0mm | 8mm | |
| 35 | 40.0mm | 8mm | |
| 36 | 45.0mm | 8mm | |
| 37 | 50.0mm | 8mm | |
| 38 | 55.0mm | 8mm | |
| 39 | 60.0mm | 8.5mm | |
| 40 | 65.0mm | 8.5mm | |
| 41 | 75.0mm | 9 mm | |
| 42 | 80.0mm | 9 mm | |
| 43 | 90.0mm | 9mm | |
| 44 | 100.0mm | 10MM |
| No. | Grade | chemical composition(%) C | Si | Mn | Wire diameter(mm) |
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 2.00-6.00 |
| 2 | 50 | 0.47-0.55 | 0.17-0.37 | 0.50-0.80 | |
| 3 | 55 | 0.52-0.60 | 0.17-0.37 | 0.50-0.80 | |
| 4 | 50 | 0.57-0.65 | 0.17-0.37 | 0.50-0.80 | |
| 5 | 65 | 0.62-0.70 | 0.17-0.37 | 0.50-0.80 | |
| 6 | 70 | 0.67-0.75 | 0.17-0.37 | 0.50-0.80 | 2.00-6.00 |
| 7 | 65Mn | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | 2.00--14.0 |
Applications
