| Material: | Carbon Steel Wire, Galvanized Wire | Mesh Opening: | 1"x1",1-1/2"x1-1/2",2"x2",2"x1"etc. |
|---|---|---|---|
| Wire Diameter: | 0.4mm - 6.0mm | Panel Size: | 1.2x2.4M,1.2x3.0M,1.8x3.6M Ect. |
| Surface Treatment: | PVC Coating | Post Height: | 1.1M-3.0M |
| High Light: | garden perimeter 3d curved fence,galvanized iron 3d curved fence,0.4mm curved garden fence |
||
Cheap Galvanized Iron Wire Mesh Panel 3D Curved Garden Perimeter Fence Manufacturer
Product Description:

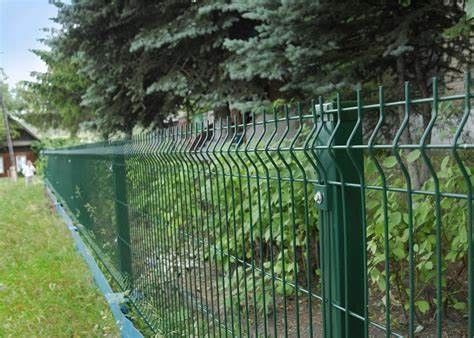

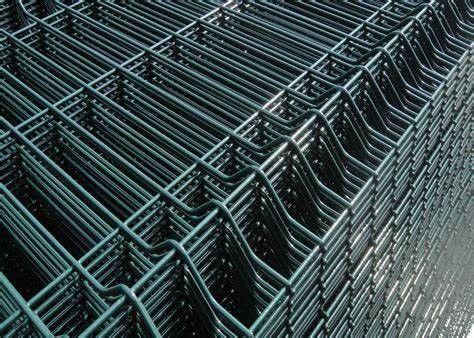

Curvy welded fence, also known as 3D security fence, is a kind of specially designed welded wire mesh with V-shaped bending curves in its longitudinal direction.
It is made of high quality carbon steel wires where wires in the horizontal and vertical direction are welded at their junctions to provide a rigid wire mesh fence.
Generally, the number of V-shaped curves varies as the height of welded wire mesh varies.
Application: Its attractive appearance, rigid structure and excellent visibility make it become a popular security fence that is widely used in railways, airports, schools, factories, residential areas, gardens, parks, sports stadiums, etc.
Specification
| Height | 630mm,830mm,1030mm,1230mm,1530mm,1630mm,1730mm,1830,,.1930mm,2030mm,2230mm,2430mm |
| Width | 2000mm,2500mm,2900mm |
| Wire diameter | 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm |
| Mesh opening | 50*100mm, 50*150mm, 50*200mm, 75*100mm, etc |
| Clamp | Metal clamp/Anti-UV plastic clamp/no clamp(for peach post) |
| Post | Round post(48OD*1.5/2.0mm, 60OD*1.5/2.0mm) Square post(50*50*1.5/2.0mm, 60*60*1.5/2.0mm, 80*80*1.5/2.0mm) Rectangular post(40*60*1.5/2.0mm, 40*80*1.5/2.0mm, 60*80*1.5/2.0mm, 80*100*1.5/2.0mm) |
| Post cap | Metal cap/Anti-UV plastic cap |
Generally, the number of V-shaped curves varies as the height of welded wire mesh varies.
If the fence height falls between 630 mm and 1430 mm, it will have 2 folds; if the fence height falls between 1530 mm and 1930 mm, it will have 3 folds; if the fence height falls between 2030 and 2430, it will have 4 folds as shown.
Fence posts
Advantages of Galvanized 3D Welded Wire Mesh Panel:
1. Aesthetics beauty looking.
2. Wild scope of using.
3. Thick coated with rust resistance.
4. Economic and long service life.
Post and all kits:
We provide posts and its all kits for the galvanized 3D welded wire mesh fence, and the size can be customized as well.
Workshop&Packing:
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
