Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel Wire, Galvanized Wire | Mesh Opening: | 1"x1",1-1/2"x1-1/2",2"x2",2"x1"etc. |
|---|---|---|---|
| Wire Diameter: | 0.4mm - 6.0mm | Panel Size: | 1.2x2.4M,1.2x3.0M,1.8x3.6M Ect. |
| Surface Treatment: | PVC Coating | Post Height: | 1.1M-3.0M |
| High Light: | 3d bending curved garden fence,peach post curved garden fence,peach post fencing for curved areas |
||

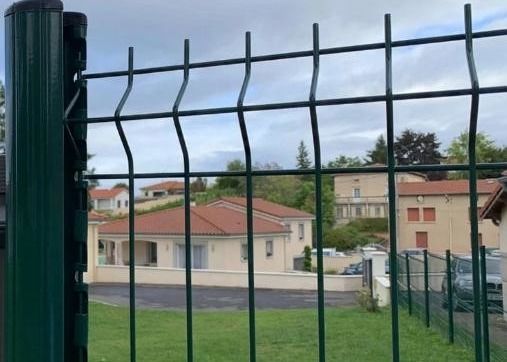

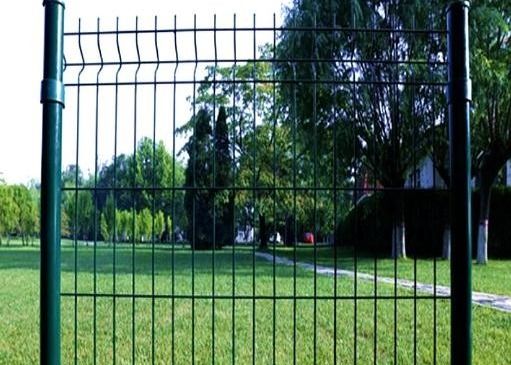

3D Bending Curved Panel Welded Wire V Mesh Rigid Grid Garden Fence With Peach Post
Product Description:
3D Panel Fence is also known as curvy welded fencing, triangle mesh fence, welded wire fence, etc.
3D Panel Fence is one of the most important ways to keep your home safe and secured from all forms of attacks by armed robbers and so on.
Welded Wire Mesh Fencing is very affordable and inexpensive that is why we see most homes using wire fencing for their walls and also very durable and easy to make and fix on fences.
The surface treatment of 3D Panel Fence includes: hot-dipped galvanized, PVC coated, powder coated
Applications of PVC 3D Welded Wire Mesh:
The PCV 3D welded wire mesh panels are commonly made of low carbon steel wire or galvanized wire,and then coated after being welded. However,the material of galvanized wire is much cost and stronger than low carbon steel wire.
Specifications of Galvanized 3D Welded Wire Mesh Panel:
Welded Wire curve fence is a new product popular in many developed countries.It is beautiful and convenient
in installation.The panels are made of wire with diameters ranging from 2.0 mm to 6.0 mm, which ensure a very high stiffness of the fence. The panels up to 2000mm, 2500 mm,3000mm wide and with heights ranging from 630 mm to 2430 mm.
Security fencing also called 3D security fence, and wire mesh fence, is widely used in garden, factory, railway, farmland and residence. Curved wire mesh fence can supply strongth and rigidity. Besides curves varies according to the fence height to produce optimum strength.
| Height | 630mm,830mm,1030mm,1230mm,1530mm,1630mm,1730mm,1830,,.1930mm,2030mm,2230mm,2430mm |
| Width | 2000mm,2500mm,2900mm |
| Wire diameter | 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm |
| Mesh opening | 50*100mm, 50*150mm, 50*200mm, 75*100mm, etc |
| Clamp | Metal clamp/Anti-UV plastic clamp/no clamp(for peach post) |
| Post | Round post(48OD*1.5/2.0mm, 60OD*1.5/2.0mm) Square post(50*50*1.5/2.0mm, 60*60*1.5/2.0mm, 80*80*1.5/2.0mm) Rectangular post(40*60*1.5/2.0mm, 40*80*1.5/2.0mm, 60*80*1.5/2.0mm, 80*100*1.5/2.0mm) |
| Post cap | Metal cap/Anti-UV plastic cap |
Advantages of Galvanized 3D Welded Wire Mesh Panel:
1. Aesthetics beauty looking.
2. Wild scope of using.
3. Thick coated with rust resistance.
4. Economic and long service life.
Post and all kits:
We provide posts and its all kits for the galvanized 3D welded wire mesh fence, and the size can be customized as well.
metal clamps
metal clamps-02
Workshop&Packing:
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
