Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel Wire, Galvanized Wire | Mesh Opening: | 1"x1",1-1/2"x1-1/2",2"x2",2"x1"etc. |
|---|---|---|---|
| Wire Diameter: | 0.4mm - 6.0mm | Panel Size: | 1.2x2.4M,1.2x3.0M,1.8x3.6M Ect. |
| Surface Treatment: | PVC Coating | Post Height: | 1.1M-3.0M |
| High Light: | powder coated curved steel fence,commercial area curved steel fence,powder coated curved metal garden fencing |
||

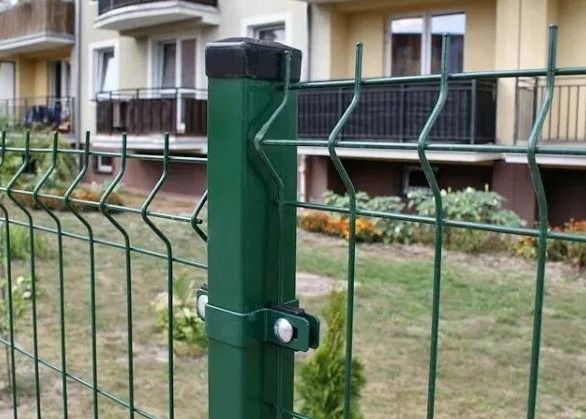

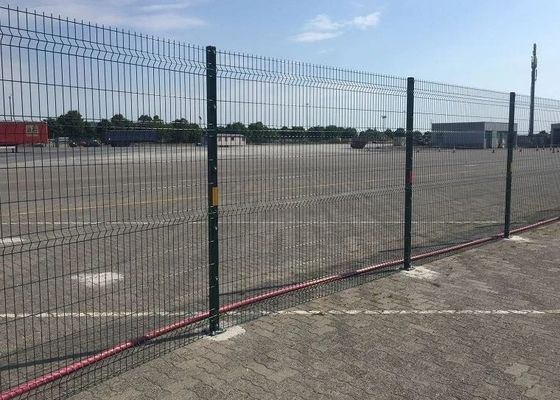

Powder Coated Curved Welded Wire Mesh Fence for Garden Commercial Area Hospitals
Product Description:
Welded Fence with refined design, wide applications, convenient installation, and this kind of item is very favorable for the users.
Using high quality steel as raw material, the welded panels is very plain and strong resistance strength.
It is well suitable for a wide range of application, for example for enclosing commercial grounds, lawn, and road.
Applications of PVC 3D Welded Wire Mesh:
The PCV 3D welded wire mesh panels are commonly made of low carbon steel wire or galvanized wire,and then coated after being welded. However,the material of galvanized wire is much cost and stronger than low carbon steel wire.
Specifications of Galvanized 3D Welded Wire Mesh Panel:
Welded Wire curve fence is a new product popular in many developed countries.It is beautiful and convenient
in installation.The panels are made of wire with diameters ranging from 2.0 mm to 6.0 mm, which ensure a very high stiffness of the fence. The panels up to 2000mm, 2500 mm,3000mm wide and with heights ranging from 630 mm to 2430 mm.
Security fencing also called 3D security fence, and wire mesh fence, is widely used in garden, factory, railway, farmland and residence. Curved wire mesh fence can supply strongth and rigidity. Besides curves varies according to the fence height to produce optimum strength.
| Code | Panel Height | Panel Width | Wire Dia | Mesh Size | No. V Curve |
| 111-1530 | 1530 mm | 2500 mm | 4.0mm or 4.5mm | 50x200mm | 3 |
| 111-1730 | 1730 mm | 2500 mm | 4.0mm or 4.5mm | 50x200mm | 3 |
| 111-2030 | 2030 mm | 2500 mm | 4.5mm or 5.0mm | 50x200mm | 4 |
| 111-2430 | 2430 mm | 2200 mm | 4.5mm or 5.0mm | 50x200mm | 4 |
| 111-2730 | 2740 mm | 2200 mm | 4.5mm or 5.0mm | 50x200mm | 4 |
| Item | Section-1 | Section-2 | Thickness | Installation-1 | Installation-2 |
| SHS Post | 60x60 mm | 80x80 mm | 2.0mm or 2.5mm | Post depth in the Ground with Concrete |
Screw Pile Or Welding with Flange Plate |
| RHS Post | 40x60 mm | 60x80 mm | 2.0mm or 2.5mm | ||
| Peach Post | 50x70 mm | 70x100 mm | 1.2mm or 1.5mm | ||
| I type Post | 70x44 mm | 100x55 mm | 1.5mm or 2.0mm | ||
| CHS Post | ø60 mm | ø76 mm | 2.0mm or 2.5mm |
Advantages of Galvanized 3D Welded Wire Mesh Panel:
1. Aesthetics beauty looking.
2. Wild scope of using.
3. Thick coated with rust resistance.
4. Economic and long service life.
Post and all kits:
We provide posts and its all kits for the galvanized 3D welded wire mesh fence, and the size can be customized as well.
metal clamps
metal clamps-02
Workshop&Packing:
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
