Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel Wire, Galvanized Wire | Mesh Opening: | 1"x1",1-1/2"x1-1/2",2"x2",2"x1"etc. |
|---|---|---|---|
| Wire Diameter: | 0.4mm - 6.0mm | Panel Size: | 1.2x2.4M,1.2x3.0M,1.8x3.6M Ect. |
| Surface Treatment: | PVC Coating | Post Height: | 1.1M-3.0M |
| High Light: | 3d curved metal fence,pvc coated curved metal fence,welded mesh curved metal garden fencing |
||

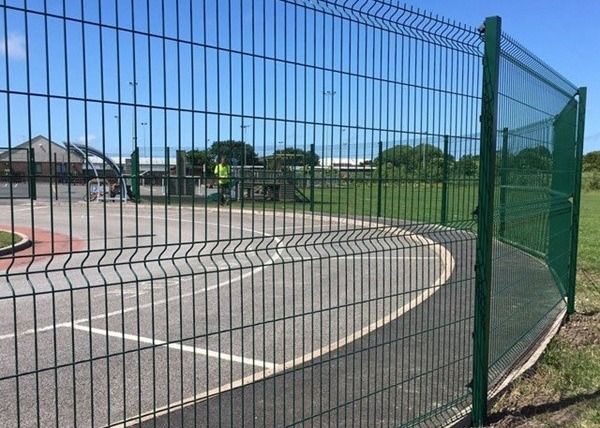

3D Curved PVC Coated Welded Mesh Fence
Product Description:
we provides self-lock welded wire mesh fence with V-bending treatment. Various specifications are acceptable to meet your needs. Contact us today.
Our welded mesh fence is produced from low carbon steel wire with a welding strength of over 50%. The fence surface is pre hot dipped galvanized and then polyester powder coated to make the welded fence resistant to rust and corrosion.
Additional V-bending treatment is applied to increase the transverse strength of fence panels. This type of metal fence will be fixed by clamps and you will get full sets of accessories for fastening.
1) Intruction of our Welde Mesh fence Products
Galvanized/PVC Coated Welded Mesh fence with curves/Garden Fence is made into panel as main part of welded wire fence for security and segregate of road, yards, sport fields, airports and public district fencing by fix them with anti-thief post, round post or square post. It is a commercial choice and welcome by people all over the world.
2) Specifications of the Welded Mesh Fence:
PVC Coated Welded Mesh fence/Garden Fence specifications |
||
| 1. Welded mesh Fence Panel (With or Without Curves) |
Material |
Low carbon steel wire |
Wire diameter |
3.0mm ~ 6.0mm; |
|
Opening(mm) |
50X100,50X120,50X150,50X200,75X150,75X200 |
|
Height |
0.8 ~ 2.0m; less than 4.0m is available |
|
Width |
2m ~ 3.0m |
|
Panel Type |
With or without curves are both available as request. |
|
2. Welded Mesh Fence Post |
Square post |
50mmx50mm, 60mmx60mm, 40mmx60mm, |
Round Post |
Φ48mm, Φ60mm |
|
Peach Post |
50mmx70mm, 70mmx100mm |
|
Post thickness |
1.2mm to 2.5mm |
|
Post Height |
0.8m ~ 3.5m |
|
Post Base |
With or without the base flange are both available. |
|
Post Fittings |
Post clips with Bolts and nuts, post rain cap, |
|
3. Welded Mesh Fence Finishing |
1. Hot-dip Galvanized |
|
2. PVC powder spraying coated or PVC powder dipping coated |
||
3. Galvanized +PVC powder coated |
||
4. Mesh Fence Packing |
1) With pallet; 2) Bulk in container. |
|
The customization is also available. |
||
| Panel | Post | Fittings | ||||
| Panel Height | Panel Width | Wire Thickness | Mesh Size | Post Size | Post Thickness | Type |
| 1630 | 2000 2200 2500 |
3.5 4.0 4.5 5.0 |
200*50 | 60*60 60*80 |
1.50 2.00 2.50 3.00 |
PVC Rain Cap |
| 1830 | ||||||
| 2030 | ||||||
| 2230 | ||||||
| Surface Treatment | Pre Hot Dipped Galvanized + Polyester Powder Coated ( Ral Color ) Heavy Duty Hot Dipped Galvanized |
|||||
Applications of PVC 3D Welded Wire Mesh:
The PCV 3D welded wire mesh panels are commonly made of low carbon steel wire or galvanized wire,and then coated after being welded. However,the material of galvanized wire is much cost and stronger than low carbon steel wire.
Specifications of Galvanized 3D Welded Wire Mesh Panel:
Welded Wire curve fence is a new product popular in many developed countries.It is beautiful and convenient
in installation.The panels are made of wire with diameters ranging from 2.0 mm to 6.0 mm, which ensure a very high stiffness of the fence. The panels up to 2000mm, 2500 mm,3000mm wide and with heights ranging from 630 mm to 2430 mm.
Security fencing also called 3D security fence, and wire mesh fence, is widely used in garden, factory, railway, farmland and residence. Curved wire mesh fence can supply strongth and rigidity. Besides curves varies according to the fence height to produce optimum strength.
Advantages of Galvanized 3D Welded Wire Mesh Panel:
1. Aesthetics beauty looking.
2. Wild scope of using.
3. Thick coated with rust resistance.
4. Economic and long service life.
Post and all kits:
We provide posts and its all kits for the galvanized 3D welded wire mesh fence, and the size can be customized as well.
metal clamps
metal clamps-02
Workshop&Packing:
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
