1.5mm Diameter Woven Self Cleaning Screen Mesh , Vibrating Screen Wire Mesh

1.5mm Diameter Woven Self Cleaning Screen Mesh , Vibrating Screen Wire Mesh
1.5mm Diameter Woven Self Cleaning Screen Mesh , Vibrating Screen Wire Mesh 1.5mm Diameter Woven Self Cleaning Screen Mesh , Vibrating Screen Wire Mesh 1.5mm Diameter Woven Self Cleaning Screen Mesh , Vibrating Screen Wire Mesh 1.5mm Diameter Woven Self Cleaning Screen Mesh , Vibrating Screen Wire Mesh

Large Image :  1.5mm Diameter Woven Self Cleaning Screen Mesh , Vibrating Screen Wire Mesh

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: 4mm
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 100pieces per week
Contact Now
Detailed Product Description
Material: Black Wire, Spring Steel Wire, 65mn Manganese Steel Wire And Stainless Steel Wire Aperture: 0.8 - 8 Mm
Size: 1.5mx1.95m Install: Hooked
Surface Treatment:: Galvanized Or Painted Mesh Size: 1mm - 100mm
Hole Type: Square, Rectangular And Long Slot.
High Light:

vibrating sieve screen

,

vibrating screen wire mesh

1.5mm Diameter Woven Wire Vibrating Screen Mesh

Woven vibrating screen mesh is also called quarry screen mesh, crusher screen mesh. It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire.

It has different weaving types and edge preparations. The main weaving types are flat top and crimped. Crimped type can be divided into single wire crimped and double wire crimped.

The high quality raw materials makes woven vibrating screen mesh have many features, such as high tensile, wear, temperature and weather resistance and so on.

With so many features, the woven vibrating screen mesh is used on vibrating machines in screening and sizing all kinds of sand, gravel, coal, stone, rock and other materials in mining, quarry, aggregate production industries.



Material: black wire, spring steel wire, 65mn manganese steel wire and stainless steel wire.
Surface Treatment: galvanized or painted.
Mesh Size: 1mm - 100mm.
Hole Type: square, rectangular and long slot.
Opening Size: 2.0 - 80.0 mm
Wire Diameter: 0.8 - 8 mm
Supplied Dimensions: as required by customer, in rolls or formats
Installation Instructions:
The screen is installed with using of tensioning metallic bars into a separator over different types of hook strips, further with using of side bars and wedges, possibly is fastened into a frame.

Features:
  • Varied lengths
  • Require less maintenance
  • Sturdy construction


Application:
The Double Crimp Screen can be used in the following fields as:

  •  Safety grids (e.g. car industry, mechanical engineering, building industry)
  •  Filling elements for gates and fences in buildings and gardens
  •  Booth construction
  •  Plant breeding
  •  Pigeon barriers
  •  Noise protection



Specification:




No Steel Grade Chemical Composition
C Si Mn
1 45 0.42-0.50 0.17-0.37

0.50-0.80


2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60



Mesh/inch Wire Diameter Aperture Open Area Weight(LB)/100square foot
Inch MM Inch MM
2x2 0.063 1.6 0.437 11.1 76.4 51.2
3x3 0.054 1.37 0.279 7.09 70.1 56.7
4x4 0.063 1.6 0.187 4.75 56 104.8
5x5 0.041 1.04 0.159 4.04 63.2 54.9
6x6 0.035 0.89 0.132 3.35 62.7 48.1
8x8 0.028 0.71 0.097 2.46 60.2 41.1
10x10 0.02 0.51 0.08 2.03 64 26.1
12x12 0.023 0.584 0.06 1.52 51.8 42.2
14x14 0.023 0.584 0.048 1.22 45.2 49.8
16x16 0.018 0.457 0.0445 1.13 50.7 34.5
18x18 0.017 0.432 0.0386 0.98 48.3 34.8
20x20 0.02 0.058 0.03 0.76 36 55.2
24x24 0.014 0.356 0.0277 0.7 44.2 31.8
30x30 0.013 0.33 0.0203 0.52 37.1 34.8
35x35 0.011 0.279 0.0176 0.45 37.9 29
40x40 0.1 0.254 0.015 0.38 36 27.6
50x50 0.009 0.229 0.011 0.28 30.3 28.4
60x60 0.007 0.178 0.0097 0.25 33.9 20.4
70x70 0.0065 0.165 0.0078 0.2 29.8 20.8
80x80 0.0065 0.165 0.006 0.15 23 23.2
90x90 0.005 0.127 0.0061 0.16 30.1 15.8
100x100 0.0045 0.114 0.0055 0.14 30.3 14.2
110x110 0.004 0.1016 0.0051 0.1295 30.7

12.4


Carbon Steel Parameter:

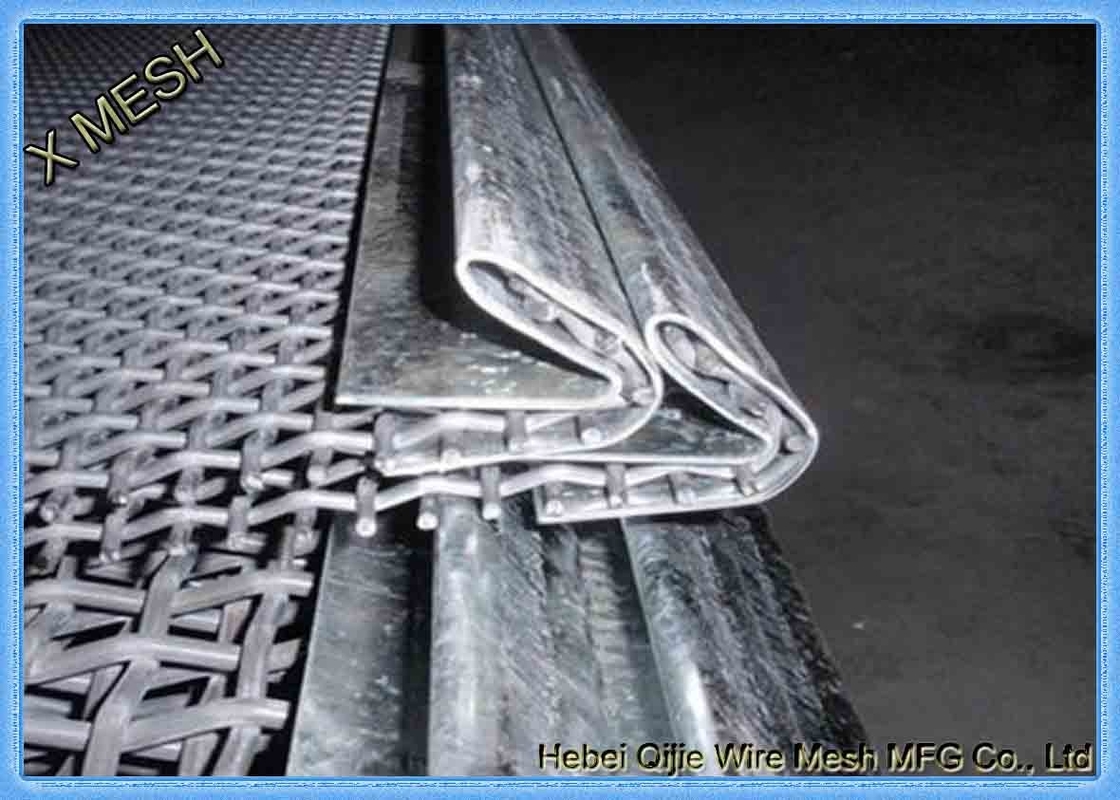

1.5mm Diameter Woven Self Cleaning Screen Mesh , Vibrating Screen Wire Mesh 0



Photo:

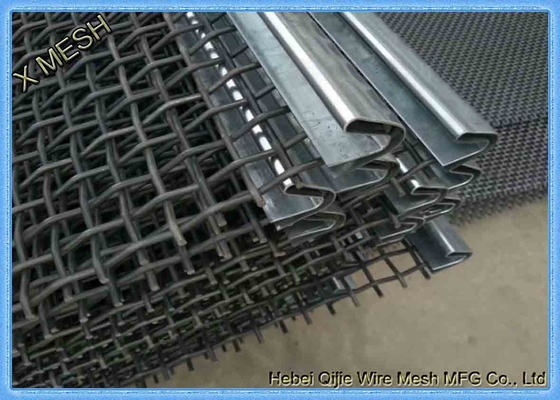

1.5mm Diameter Woven Self Cleaning Screen Mesh , Vibrating Screen Wire Mesh 1

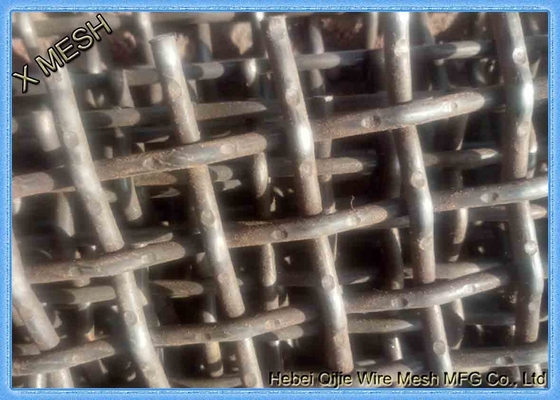

1.5mm Diameter Woven Self Cleaning Screen Mesh , Vibrating Screen Wire Mesh 2







Tag:

vibrating screen wire mesh,

vibrating sieve screen,

self cleaning screen mesh
