Welded Razor Mesh Fence / Complete Security Fence For Perimeter Protection

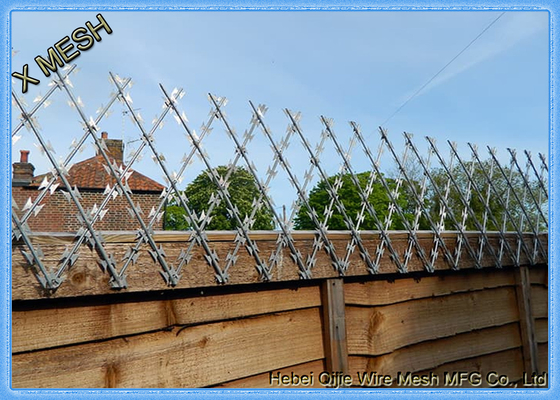

Razor Mesh Fence – Complete Security Fence for Perimeter Protection

The razor mesh fence is a new type of safety fence welded by straight type razor wire. It is usually welded into a square or diamond shape. This kind of razor wire fence is impossible to climb and cut because it has sharp barbs and strong wire. The typical feature of razor mesh fence is that it’s a complete security fence requiring no additional top options when installed.

High tensile core wires are welded in a diamond shape or square shape with razor blades, acting as additional deterrent or means on entrapment. This creates an effective barrier which is not just impossible to climb, but resistant to cutting as well.

welded razor wire mesh

Razorwire Specs – Stainless Steel 304

Choosing your Razor wire

The bigger the diameter the more of an obstacle and deterrent the Razor wire is. 450mm diameter is the smallest size we recommend for domestic type applications. This size is normally an adequate deterrent and also the easiest to fit as standard support brackets will generally do for this diameter and weight of razor wire. 730mm or even 900mm diameter will require specially made brackets for the installation.

If fitting to the ground then we would recommend a size that cant be vaulted over, then the suggested options would be to install a single run of 900mm diameter Razorwire or alternatively stack smaller diameter Razorwire on top of each other either vertically or in a fashion.

Points to note when selecting Razor Wire

• The core wire diameter:
  2.5mm is the industry standard, anything less has proportionately less tensile and inherent strength.
• The number of loops per coil
  This determines the amount of Razorwire on the coil and therefore the profile density when deployed, an important point when comparing prices. All our coils have 55 loops per coil, this means the coils can be extended easily up to 10m whilst maintaining a dense profile of Razorwire.
• Stainless Steel or Galvanised?
  The environment the product is being deployed in may determine whether Stainless Steel or Galvanised is the best option. Stainless Steel is considerably more expensive but offers greater durability especially in salt air environments and over time will outlast Galvanised therefore making it the best long term option in salt air. However Galvanised is more than adequate for most UK regions and applications. We would always suggest you check the level of zinc coating when selecting Razorwire, all our Galvanised products are 200g/m2, if the supplier cant provide the information, you may only be getting a product with 60g/m2 which will deteriorate and rust much more quickly.
• Blade type
  Smaller blades such as BTO10 (10mm) are quite small and therefore less of a deterrent, larger blade profiles such as CBT65 (65mm) are much more effective but the blade type will also be reflected in the price.
• Blade thickness
  0.5mm is the industry standard, anything less is likely to bend easily.

razor wire loading

concertina razor wire when pull open

razor wire with clips
