Material: | Galvanized Steel Wire | Application: | Security Fence |
---|---|---|---|
Type: | Expanded Mesh | Color: | Silver |
Usage: | Construction | Feature: | Corrosion Resistance,durable,Easily Assembled |
Surface Treatment: | Hot Dipped Galvanized | Size: | As Your Requirement |
Highlight: | cbt 65 concertina razor wire hot galvanized,prison concertina razor wire,bto -22 prison razor wire |
Hot Galvanized BTO-22 CBT 65 Concertina Razor Barbed Wire, Razor Wire Mesh

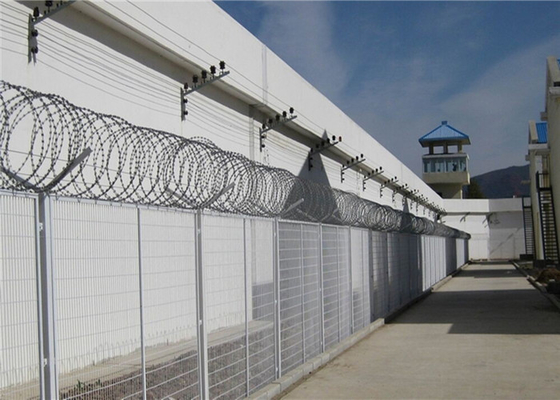

Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized or PVC coated to prevent corrosion.
Material: galvanized wire, stainless steel wire
Process: galvanized steel plate or stainless steel plate punched into certain forms then attached to the steel wire in sharp angle to form the blades.
Surface Treatment: galvanized or powder coated
Specification: BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-65.
Reference No. | Thickness | Wire Dia | Barb Length | Barb Width | Barb spacing |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101±1 |
Features:
1. Razor barbed is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire.
2. Visual and psychological deterrent.
3. Resistance to corrosion.
4. Low price and easy to install.
5. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, its special designs making climbing and touching extremely difficult.
Assortment:

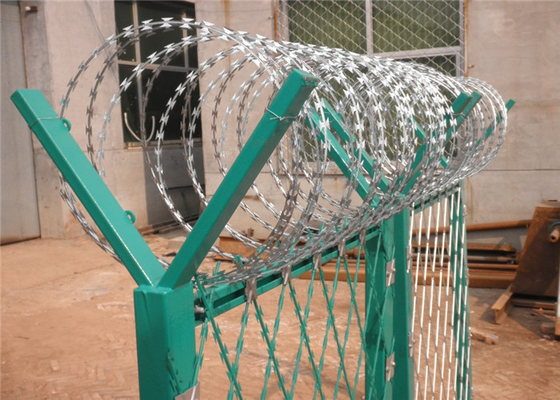

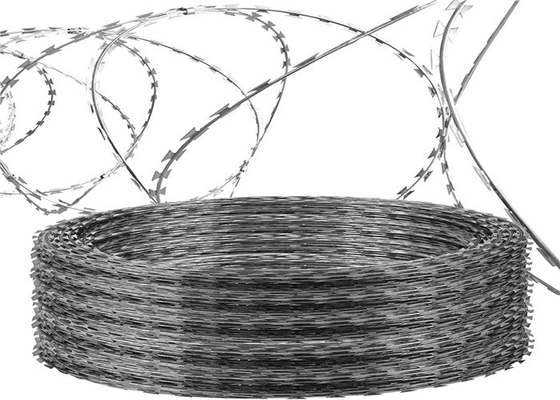

Razor barbed wire can be supplied in straight line razor wire, single coils razor wire or crossed concertina razor coils

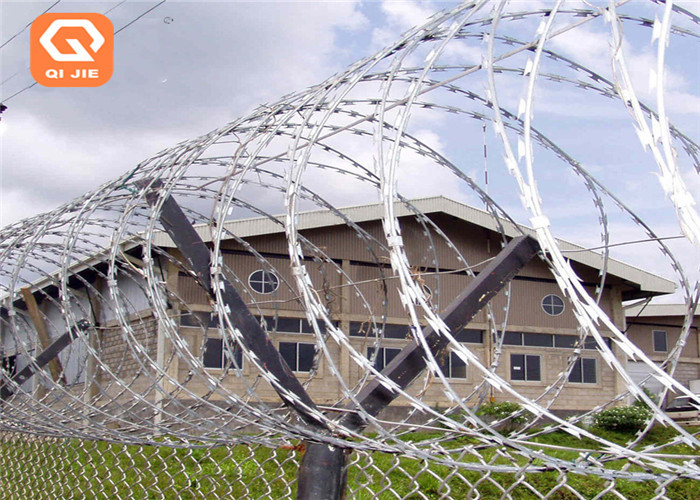

Concertina razor wire, razor barbed wire , mainly used for safety scope.
