Product Details:
Payment & Shipping Terms:
|
Surface Treatment: | Hot-dipped Galvanized | Type: | Loop Tie Wire,coil Wire |
---|---|---|---|
Function: | Making Welded Wire Mesh | Galvanized Technique: | Hot Dipped Galvanized |
Application: | Construction Binding Wire | Color: | Galvanized |
Package: | Big Coil Wire | Zinc Coating: | As Customer's Request |
Highlight: | 2.5mm diameter concertina razor wire,iso9001 concertina razor wire,iso fencing razor barbed wire |
2.5mm Wire Diameter Galvanized Razor Barbed Binding Wire Used For Fencing
Material: Good-quality low- and medium-carbon steel strips and stainless steel strips
Type: Linear razor barbed wire, spiral razor barbed wire and flat razor barbed wire
Process: Punching and rolling
Feature: Good protecting performance, elegant appearance, diversified shapes, quick construction and good deterring effect
Purpose: Separation and protection in military borders, jails, national defense organizations and facilities, national key facilities, communities, residential buildings, etc.

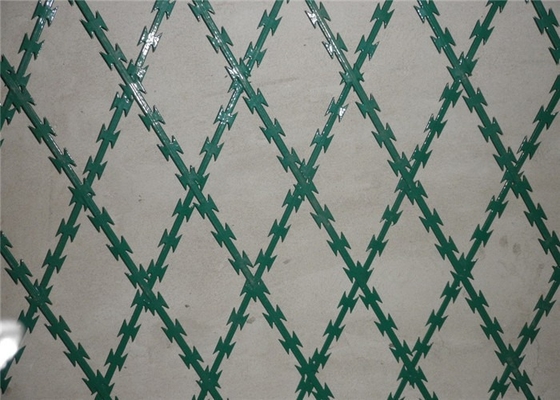

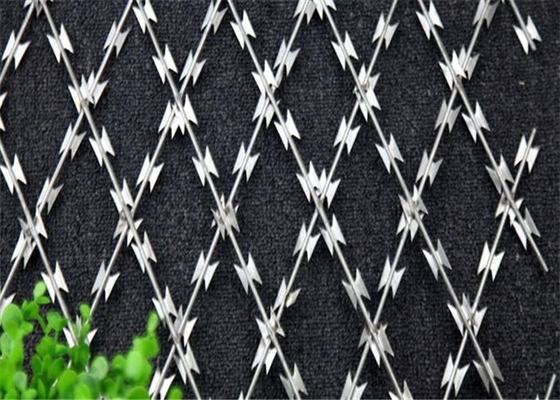

Linear razor barbed wire
In the linear razor barbed wire, razor barbed wires are welded to from diamond-shaped holes or rectangular holes. If someone wants to climb over it, netty razors are quite sharp, nobody can hold it by hands and climb over it on feet, so that it definitely is a protection wall which nobody can climb over it and has quite good deterrence and prevention effect. Furthermore, it has elegant appearance and obvious actual effects and is widely applied to jail, military and governmental facilities.

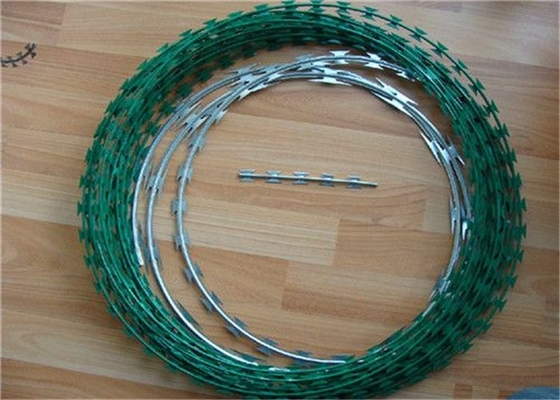

Spiral razor barbed wire
In the spiral razor barbed wire, two razor barbed wires are highly clamped by stainless steel sheets and hot galvanized sheets. It shows a cross shape when it is unfolded, and is beautiful and practical.
Product features: Corrosion resistance, ageing resistance, sunscreen, etc. The anti-corrosion type includes electroplating and hot dip.
Flat razor barbed wire
The flat razor barbed wire, flat plate razor barbed wire or knife-type barbed wire is a kind of effective protective net.
Outside Diameter | No.of Loops | Standard Length per Coil | Type | Notes |
450mm | 33 | 7-8M | CBT-60.65 | Single coil |
500mm | 56 | 12-13M | CBT-60.65 | Single coil |
700mm | 56 | 13-14M | CBT-60.65 | Single coil |
960mm | 56 | 14-15M | CBT-60.65 | Single coil |
450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
Concertina Specification For Razor Barbed Wire
Reference No. | Thickness | Wire Dia | Barb Length | Barb Width | Barb spacing |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 46±1 |
BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 46±1 |
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 101±1 |
Package:
⇒Packed as your special require
⇒Packed with pallet
⇒Packed with paper box
⇒Packed with waterproof paper inner, woven bag outer
