Product Details:
Payment & Shipping Terms:
|
| Surface Treatment: | Hot Dipped Galvanized | Type: | BTO-22 |
|---|---|---|---|
| Clips: | 5 Clips , 3 Clips , Without Clip | Packing: | Inside Waterproof Paper |
| Material: | Hot-dipped Galvanized | ||
| High Light: | bto 22 flat wrap razor wire,5 clips flat wrap razor wire,hdg razor wire bto 22 |
||

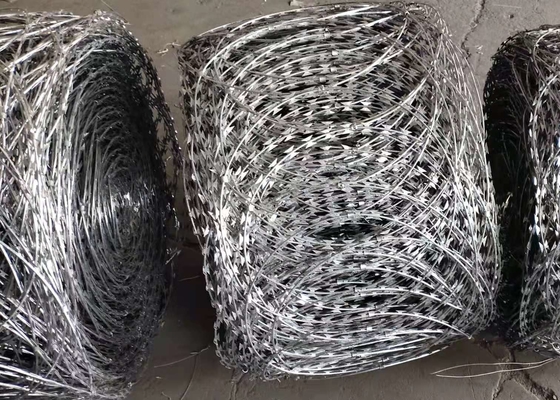

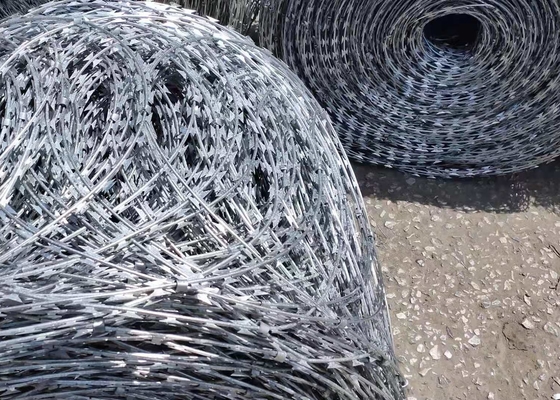

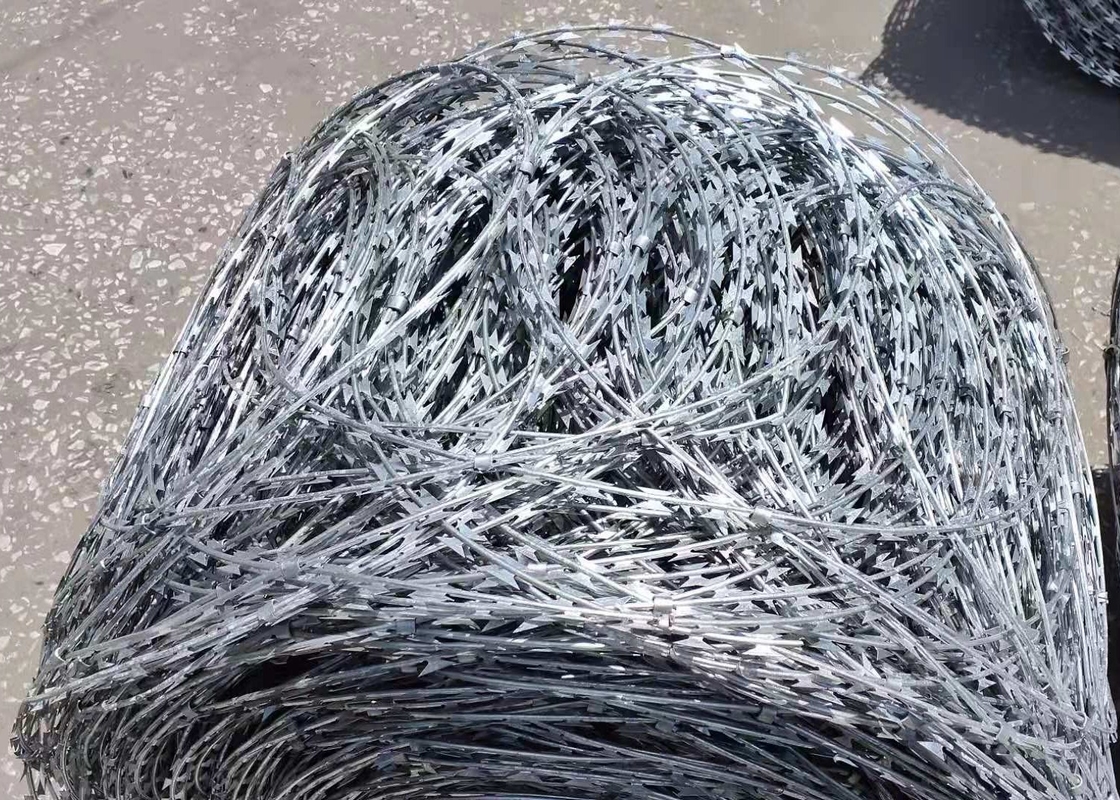

Razor wire flat wrap coils are made of high tensile razor wire, clapped into a flat panel formation.
Flat wrap razor wire is fabricated by using single strand razor wire which is then clipped to create flat sheet in vertical direction. The flat wrap coil can be used to upgrade any existing fence or brick wall, which is an ideal alternative to common concertina razor wire where high security is required but with space restriction.
Installation Forms
Flat wrap coils can be used in the following forms:
Installed against the existing smooth wire mesh fence;
Fitted to the welded mesh fence;
Fitted by overlapping the fence mesh;
Installed to the brick wall directly.
Advantages:
Flat wrap coils will substantially improve the effectiveness of the fence. Installed on this basis, innocent persons are protected from injury by the smooth wire mesh fence while the potential intruders will get frightened back.
he flat coils provide a neat but effective barrier when used together with mesh fences.
Flat wrap coil installation is particularly simple when it is fitted by overlapping the fence mesh.
It provides a high barrier when mounted to the wall.
| Razor Wire Flat wrap Specifications - Standard Coil Sizes | ||
| Height | Length | Weight |
| 500 mm (20 inch) |
15 m (50 ft.) |
9.5 kg (21 lbs) |
| 700 mm (28 inch) |
15 m (50 ft.) |
13 kg (29 lbs) |
| 900 mm (36 inch) |
15 m (50 ft.) |
14.5 kg (32 lbs) |
[ Zinc Coating Class ]
The coating class shall comply with the standard of Zinc EN 10244-2,shall be specified with the order.
Hot-dipped galvanized zinc coating grade:
Grade C: Wire 60-80g/m2 Blade:60-80g/m2
Grade B: Wire 80-120g/m2 Blade:100-150g/m2
Grade A: Wire 160-200g/m2 Blade:230-270g/m2
Different size have different loops , different clips ,
please confirm which one do you need , so that we can give you reasonable price .
