| Surface Treatment: | Hot Dipped Galvanized | Type: | BTO-22,CBT65 |
|---|---|---|---|
| Clips: | 5 Clips , 3 Clips , Without Clip | Packing: | Inside Waterproof Paper |
| Material: | Hot-dipped Galvanized | ||
| High Light: | hot galvanized flat wrap razor wire,bto22 flat wrap razor wire,bto22 stainless steel razor wire |
||

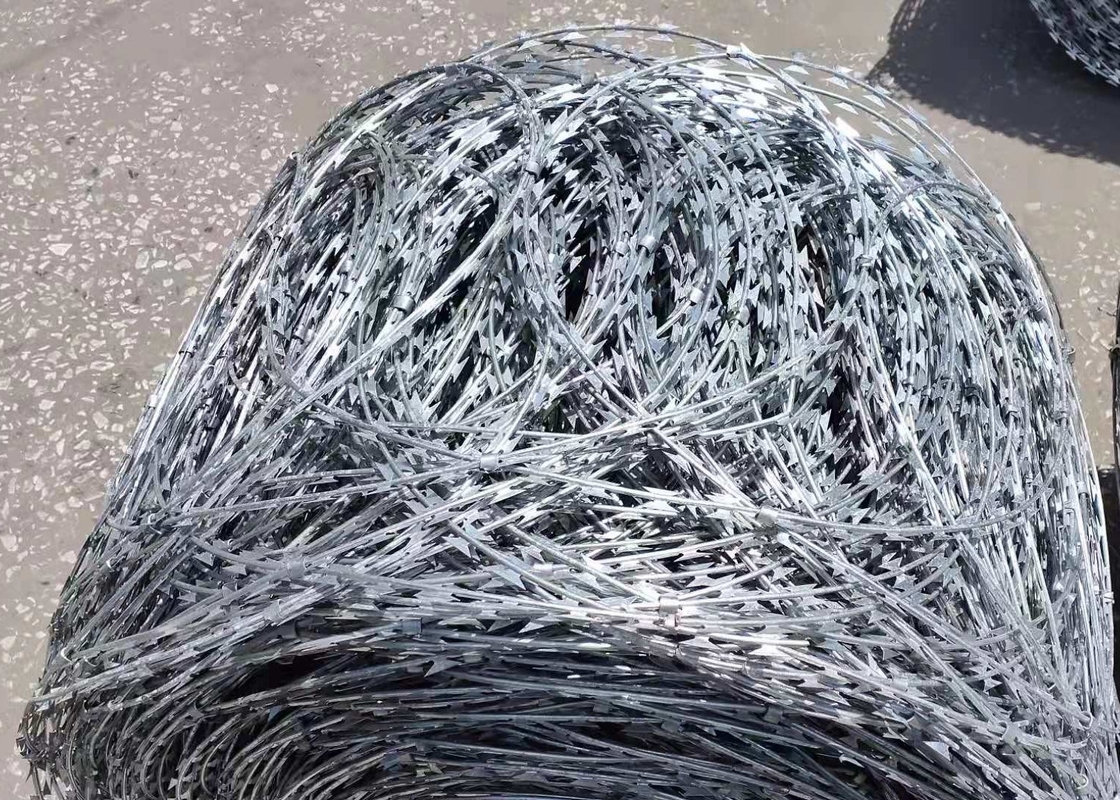

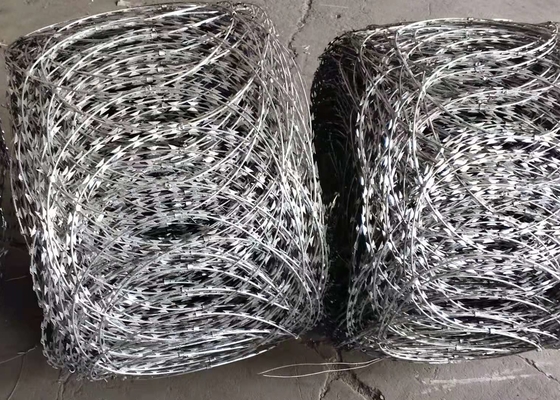

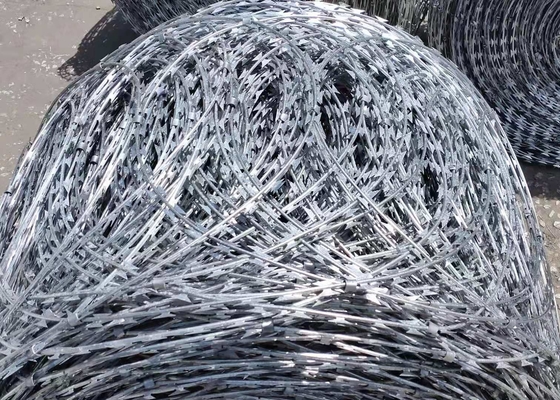

Hot Galvanized BTO22 Razor Wire Flat Wrap For Farm
Razor Wire is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
Specification
1, Material: hot -dip galvanized sheet and wire or Stainless steel sheet and wire (ALSI 430 and ALSI 304)
2, Outside diameter : 450mm, 500mm, 600mm,700mm, 800mm,900mm,960mm, 980mm
3, No. of Loops: 33, 56
4, CLIPS: 3 ,5
5, Packing : Inner proof paper, outside weave bag or Carton box
All the specification and packing can be designed according to the customers need.
| Model | Thickness | Wire dia | Barb Length | Barbed Width | Barb Spacing |
| BTO-10 | 0.5+/-0.05 mm | 2.5+/-0.1mm | 10+/-1mm | 13+/-1mm | 26+/-1mm |
| BTO-12 | 0.5+/-0.05 mm | 2.5+/-0.1mm | 12+/-1mm | 15+/-1mm | 26+/-1mm |
| BTO-18 | 0.5+/-0.05 mm | 2.5+/-0.1mm | 18+/-1mm | 15+/-1mm | 38+/-1mm |
| BTO-22 | 0.5+/-0.05 mm | 2.5+/-0.1mm | 22+/-1mm | 15+/-1mm | 38+/-1mm |
| BTO-28 | 0.5+/-0.05 mm | 2.5+/-0.1mm | 28+/-1mm | 15+/-1mm | 53+/-1mm |
| BTO-30 | 0.5+/-0.05 mm | 2.5+/-0.1mm | 30+/-1mm | 21+/-1mm | 54+/-1mm |
| CBT-60 | 0.6+/-0.05 mm | 2.5+/-0.1mm | 60+/-2mm | 32+/-1mm | 102+/-1mm |
| CBT-65 | 0.3+/-0.05 mm | 2.5+/-0.1mm | 65+/-2mm | 21+/-1mm | 102+/-1mm |
| Outside diameter | No. of loops | The utmost effective length | Type | Notes |
| 450 mm | 33 | 7 - 8 M | CBT 60.65 | Single coil |
| 500 mm | 56 | 12 - 13 M | CBT 60.65 | Single coil |
| 700 mm | 56 | 13 - 14 M | CBT 60.65 | Single coil |
| 960 mm | 56 | 14 - 15 M | CBT 60.65 | Single coil |
| 450 mm | 56 | 8 - 9 M (3 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 500 mm | 56 | 9 - 10 M (3 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 600 mm | 56 | 10 - 11 M (3 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 600 mm | 56 | 8 - 10 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 700 mm | 56 | 10 - 12 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 800 mm | 56 | 11 - 13 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 900 mm | 56 | 12 - 14 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 960 mm | 56 | 13 - 15 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
| 980 mm | 56 | 14 - 16 M (5 CLIPS) | BTO - 10.12.18.22.28.30 | Cross type |
Security Welded Razor Wire Mesh/Concertina Razor Barbed Wire Application:
It has been widely used in airport, key military sites, border line, prison, government,
bank, bounding wall of villa, highway, security window, fence of railway and etc for defencing.
in many countries, it is welcomed by army and police.
modern security fencing materials fabricated with razor-sharp steel blade and high-tensile
wire. Crossed razor barbed wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders used for razor wire fence installation Razor Wire for the vessels going to gulf Aden for anti piracy.
