800mm Diameter Concertina Razor Wire Flat Wrap Bto-20

800mm Diameter Flat Wrap Razor Wire Gives An Optimum Choice For Limited Space

Razor wire is a central strand of high tensile wire, and a steel tape punched into a shape with barbs. The steel tape is cold crimped tightly to the wire. Razor wire is manufactured with a galvanized tape (Zinc coating ranging from 120 gsm to 275 gsm) and Galvanized core wire (diameter: 2.5mm) with zinc coating 90 gsm to 275 gsm). For more critical razor wire applications, stainless steel tape and stainless steel core wire is used.

Flat Razor Wire or barbed tape, designed to provide substantially more security than the standard concertina barbed tape as it provides a neat and unobtrusive form.

Flat Razor Wire have a high tensile reinforced band. Provides the maximum strength possible, making it very difficult to cut. In addition, the flat coil can be reduced from a 700mm wide coil to a less than 10mm coil and substantially more secure.

Manufactured from various metal compound options, including hot-dip galvanised (275g/m2), stainless steel grade 304 or stainless steel grade 430—an overall length of 15m per reel. Reels are available with overall diameters of either 500mm, 700mm or 900mm coils.

Flat razor wire is ideal for use in more crowded conditions than standard concertina razor wire. In addition, flat Razor Wire coils are located in one place, making the design much more compact.

The flat razor wire is designed to protect facilities in urban areas where the high-security concertina spiral razor wire cannot be used because of its bulky size.


Hot dipped galvanized blade and high carbon steel core wire.


Application

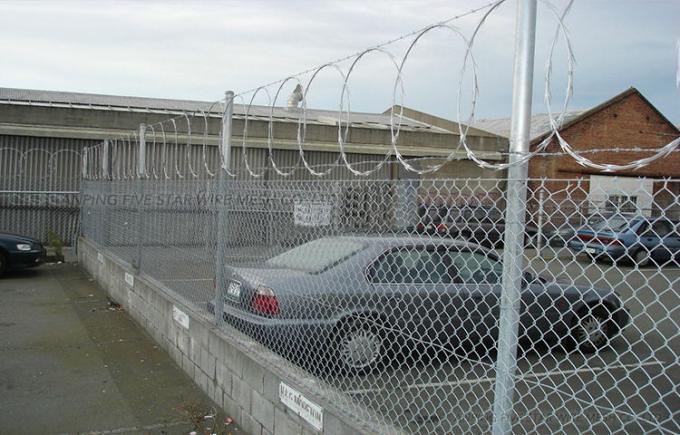

Installed against the existing smooth wire mesh fence;

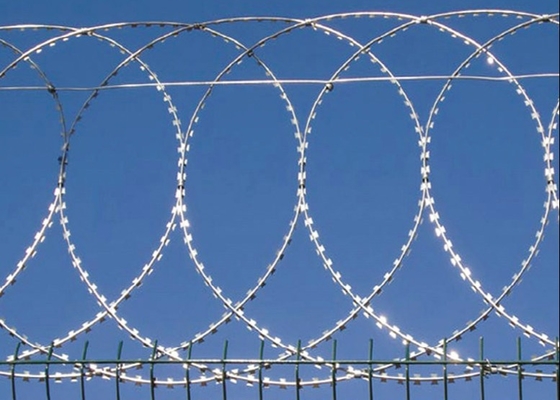

Fitted to the welded mesh fence;

Fitted by overlapping the fence mesh;

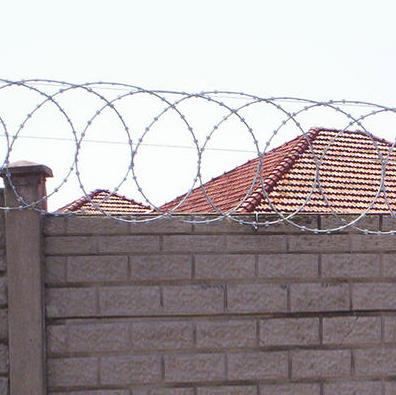

Installed to the brick wall directly.



Package

Flat razor wire is wrapped with paper inside and and then wrapped with woven bag.
Flat razor wire is bundled and wrapped with 5 coils, and each coils is 15 meters long.
