Galvanized PVC Coated Concertina Razor Barbed Wire Stainless Steel

Galvanized PVC Coated Concertina Razor Barbed Wire Stainless Steel
Galvanized PVC Coated Concertina Razor Barbed Wire Stainless Steel

Large Image :  Galvanized PVC Coated Concertina Razor Barbed Wire Stainless Steel

Product Details:
Place of Origin: HeBei,China
Brand Name: QiJie
Certification: CE
Model Number: 500mm diameter
Payment & Shipping Terms:
Minimum Order Quantity: 1000meters
Price: negotiate
Packaging Details: packing with plastic cloth
Delivery Time: within 30 days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 2000 Roll/Rolls per Month
Detailed Product Description
Razor Type:: BTO-22 Application:: Protective Construction
Material:: Hot Dipped Galvanized Sheet Type:: Barbed Wire Coil
Circle Diameter:: 50cm Length:: 30m/roll
Razor Thickness:: 0.4-0.5mm Wire Core: 2.5mm
High Light:

Galvanized Concertina Razor Barbed Wire

,

PVC Coated Concertina Razor Barbed Wire

Galvanized PVC Coated Stainless Steel Bto-22 Cbt-60 Cbt-65 Concertina Razor Barbed Wire



We are capable of produce traditional razor wire, razor wire in straight lines, razor wire in concertina single coils or crossed coils. A variety of blade type and sizes are for the choice of our customers. Standard materials for razor wire are either Hot-dipped galvanized or stainless steel.
Materials: Hot dipped galvanized, electro galvanized, stainless steel, etc
Assortment: razor barbed wire can be supplied in straight line razor wire, single coils razor wire or crossed concertina razor coils
Concertina razor wire, razor barbed wire , mainly used for safety scope.



Material:
Galvanized wire and plate
Heavy Zinc coated wire and plate
Stainless steel wire and plate
Process: galvanized steel plate or stainless steel plate punched into certain forms then attached to the steel wire in sharp angle to form the blades.
Barbed Types: BTO-10 BTO-18 BTO-22 CBT-60 CBT-65

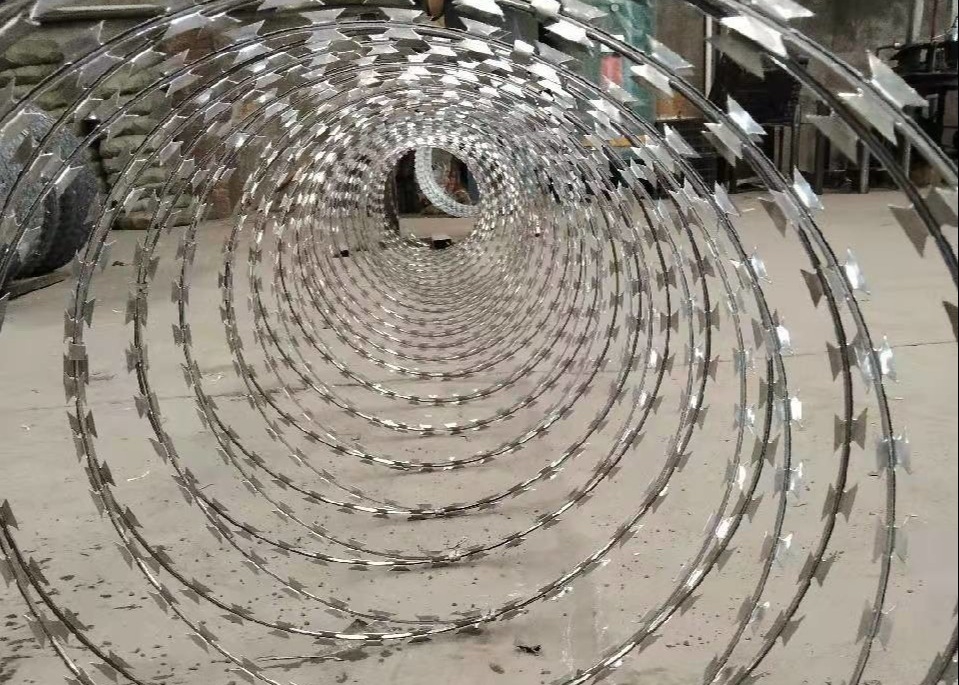

concertina razor wire



Specifications:

Reference number Thickness Wire Dia Barb length Barb width Barb spacing
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 26±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5 28 15 45±1
BTO-30 0.5±0.05 2.5 30 18 45±1
CBT-60 0.5±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.5±0.05 2.5±0.1 65±2 21±1 100±2



Specification of concertina razor wire
Outside diameter No.of loops Standard length per coil Type Notes
450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13m CBT-60.65 Single coil
700mm 56 13-14m CBT-60.65 Single coil
960mm 56 14-15m CBT-60.65 Single coil
450mm 56 8-9m(3 clips) CBT-10.10.18.22.28.30 Cross type
500mm 56 9-10m(3 clips) CBT-10.10.18.22.28.30 Cross type
600mm 56 10-11m(3 clips) CBT-10.10.18.22.28.30 Cross type
600mm 56 8-10m(5clips) CBT-10.10.18.22.28.30 Cross type
700mm 56 10-12m(5 clips) CBT-10.10.18.22.28.30 Cross type
800mm 56 11-13m(5 clips) CBT-10.10.18.22.28.30 Cross type
900mm 56 12-14m(5 clips) CBT-10.10.18.22.28.30 Cross type
960mm 56 13-15m(5clips) CBT-10.10.18.22.28.30 Cross type
980mm 56 14-16m(5 clips) CBT-10.10.18.22.28.30 Cross type



concertina razor wire



Razor Barbed Wire Feature:
1. Razor barbed is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-
tensile wire.
2. Visual and psychological deterrent.
3. Resistance to corrosion.
4. Low price and easy to install.
5. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with
piecing and cutting razor blades mounted at the top of the wall, its special designs making climbing and touching
extremely difficult.



type of razor wire



Applications:
Razor barbed wire is widely used by many countries in military field, prisons, detention houses, government buildings
and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class
fencing wire for not only military and national security applications, but also for cottage and society fence, and other
private buildings.

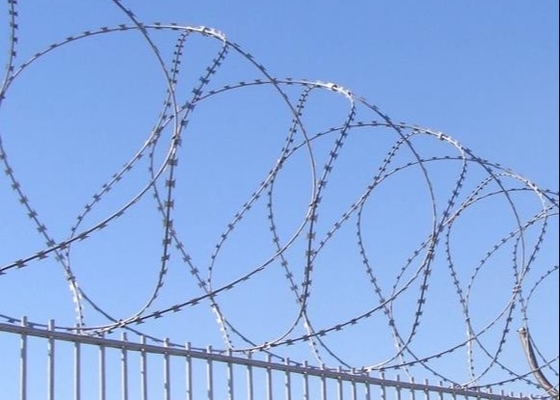

application of razor wire
