Bto22 Flat Loop Cross Type Stainless Steel Razor Wire Square Hole

Bto22 Flat Loop Cross Type Stainless Steel Razor Wire Square Hole
Bto22 Flat Loop Cross Type Stainless Steel Razor Wire Square Hole

Large Image :  Bto22 Flat Loop Cross Type Stainless Steel Razor Wire Square Hole

Product Details:
Place of Origin: HeBei,China
Brand Name: QiJie
Certification: Certification
Model Number: SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1 rolls
Price: Discuss
Packaging Details: Wooden carton
Delivery Time: within 7-30 days
Payment Terms: 30%TT
Supply Ability: 1500 Roll/Rolls per Week
Detailed Product Description
Type: Weave Wire Mesh, Wire Cloth, Crimped Wire Mesh, Rope Mesh, Welded Mesh Material: Stainless Steel Wire, 316, 304, Copper, Plain Steel Galvanized
Technique: Woven, Welded Mesh Application: Woven Wire Mesh, Filters, Screen, Decorative Wire Mesh, Protecting Mesh
Weave Style: Stainless Steel Wire, 316, 304, Copper, Plain Steel Galvanized Hole Shape: Square Hole, Round
Usage: Liquid Filter, Chmical Industry, Oil, Filtration, Filtering And Sieveing Normal Blade Type: BTO-22, BTO-30, CBT-60, CBT-65
High Light:

Square Hole Stainless Steel Razor Wire

,

Bto22 Stainless Steel Razor Wire

High Performance Stainless Steel Bto22 Flat Loop Cross Type Razor Wire​



Product  Description

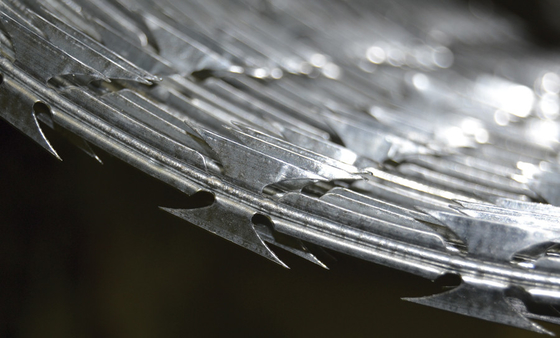

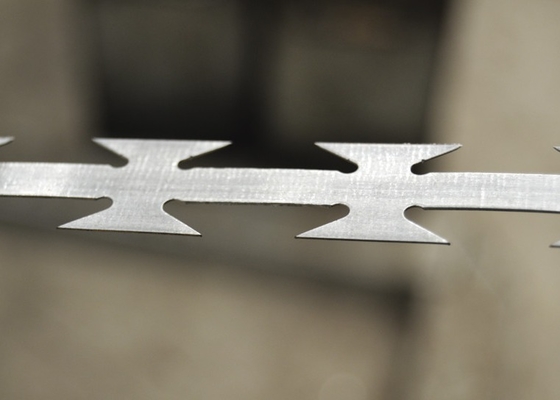

Razor wire is a highly developed form of the traditional barbed wire. The design of the razor wire barbs and the enhanced cutting resistance of the steel tape is a much more effective deterrent than barbed wire in preventing intruders climbing over or cutting through the wire.

The success of razor wire lies in the longer length of its spear-like barbs, difficulty of gaining a handhold, and the strength of the steel tape. Razor wire works to impede entry by either catching clothing or ripping through flesh.



Some of its effectiveness is also due to its intimidating appearance and well-earned fierce reputation creating a certain amount of fear in potential intruders.



Profence can supply razor wire in two basic forms: concertina wire and flat loop razor tape. Razor wire comes in a range of barb lengths, wire diameters, and loop sizes.

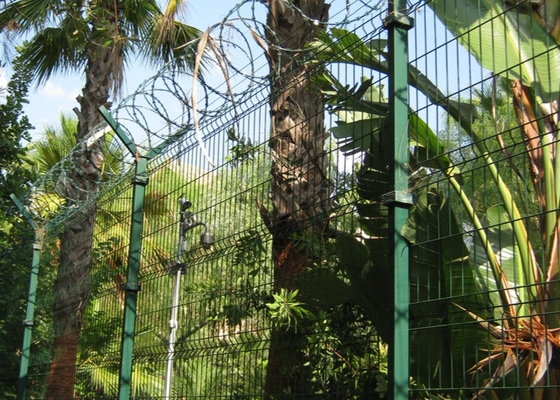

Flat loop razor tape is the perfect addition to the tops of fences and gates particularly where a flat line is needed. Such situations might include where a gate opens against a wall and a more bulky overhanging wire topping such as the concertina razor wire will prevent the gate opening fully.

The loops do not allow intruders to gain any possible hand hold positions for climbing and the steel tape is vastly more resistant to cutting than ordinary barbed wire.

We supply galvanised short barb razor tape with a loop size of 550mm. Flat loop razor tape is ideal for medium security applications including:



Concertina wire according to different shapes can be divided into single coil, crossed and double coils.

Single coil razor wire forms: straight ribbons or single coil concertina.

Characteristics: single coil barbed type wire is installed without clips. It runs in natural loops on walls. Costless and can be easily installed.

concertina razor wire

Cross concertina wire coil is two pieces of stainless steel razor wire or zinc-coated wire bound together by clips to make it stronger. This galvanized wire tape compresses the core, and adjacent turns of the cramp in five equidistant points on a circle. Total installed 3 or 5 rows of staples, so that it becomes formidable concertina, springy, spatial design. The spiral intersecting barbed wire presents an intersecting shape after opening. After stretch and installation, concertina creates a fixed and strong spatial structure. In order to overcome this type concertina wire, it must be cut at least three points.

Double Concertina Razor Coil includes two razor concertina coils with different diameters, and small diameter concertina is included in the large diameter concertina. Three nodes connect the two concertina razor. Double concertina razor wire has more beautiful appearance and better protection than other razor mesh.

concertina razor wire mesh

Standard Specifications of Welded Razor Mesh

Type:Razor Mesh:(Diamond Hole)Razor Mesh(Square Hole)

Thickness of Sheet: 0.5mm±0.05mm

Wire Diameter:2.5mm±0.05mm

Height:1.0m-3.0m

Length:2.0m-10.0m

Mesh Size:75mmx150mm100mmx200mm150mmx300mm150mmx150mm200mmx200mm300mmx300mm

Special Specification can be produced according to your request

concertina razor wire

Weaving pattern:

Products Name Barbed Wire
Material Galvanized/ Stainless Steel
Feature Electric-galvanized/ Hot-dip Galvanized/ Stainless Steel 304/ Stainless Steel 316/ Stainless Steel 430/ diffrent color of PVC Coated or Power Coated, etc.
Color Silver
Free Sample Yes
Function Description 1. Anti theft
2. Anti Climb
3.Preservative
4.High temperature resistance
5.Easy to install
6.Defense invasion
Design OEM & ODM



Outside Diameter

No.of Loops



Standard Length per Coil

Type

Notes

450 mm

33

8m

CBT-65

Single coil

500 mm

41

10m

CBT-65

Single coil

700 mm

41

10m

CBT-65

Single coil

960 mm

53

13m

CBT-65

Single coil

500 mm

102

16m

BTO-10.15.22

Cross type

600 mm

86

14m

BTO-10.15.22

Cross type

700 mm

72

12m

BTO-10.15.22

Cross type

800 mm

64

10m

BTO-10.15.22

Cross type

960 mm

52

9m

BTO-10.15.22

Cross type



concertina razor wire


Benefits of Razor Mesh Fence

  • It is almost impossible to climb
  • High-strength steel core very difficult to cut off
  • Powerful security fence barriers neat appearance
  • No secondary use, so he will not be stolen
  • Extremely simple to install, needs three to four to install molding.

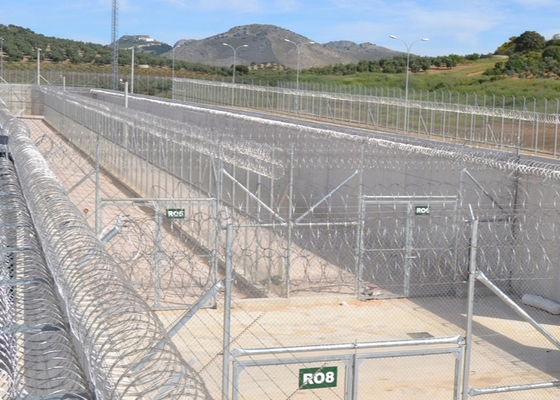

Concertina razor wire is intended for high security applications including:

  • Prisons
  • Military installations
  • Electrical substations or high voltage pylons
  • Railway yards
  • Airports
  • Factories and warehouses
  • Hazardous chemical plants or storage areas

Packaging

razor wire



flat wrap razor wire

galvanized razor wire

concertina razor wire

welded razor wire mesh

welded razor wire mesh

welded razor wire mesh​
