Bto-22 Hot Dipped Galvanized Concertina Razor Barbed Wire

Large Image : Bto-22 Hot Dipped Galvanized Concertina Razor Barbed Wire

Product Details:

Place of Origin:	HeBei,China
Brand Name:	QiJie
Certification:	Certification ISO2019025
Model Number:	SGS2019025

Payment & Shipping Terms:

Minimum Order Quantity:	1 rolls
Price:	Discuss
Packaging Details:	Wooden carton
Delivery Time:	within 7-30 days
Payment Terms:	30%TT
Supply Ability:	1500 Roll/Rolls per Week

Contact Now

Detailed Product Description

Material:	Galvanized Steel Sheet	Application:	Protecting Mesh, Fence Mesh
Finish:	Hot Dipped Galvanized	Coil Outside Diameter:	960mm
Extended Length:	15m	Name:	Galvanized Razor Barbed Wire
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	Bto-22 Concertina Razor Wire , Hot Dipped Galvanized Concertina Razor Wire , Dipped Galvanized Concertina Razor Wire

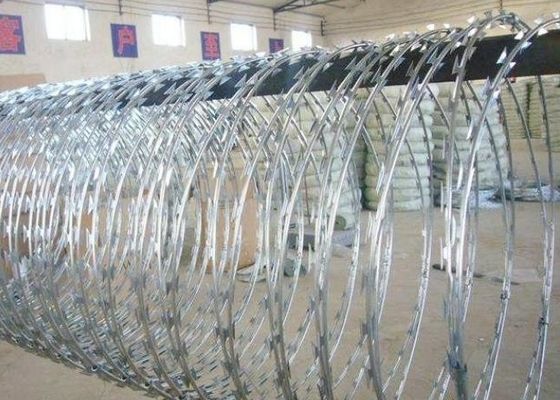

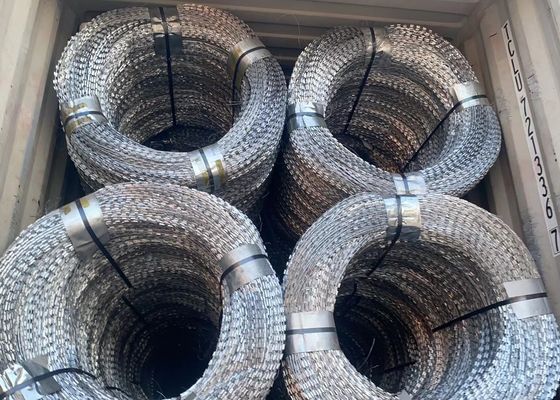

Bto-22 Hot Dipped Galvanized Concertina Razor Barbed Wire

Concertina Razor Wire, also called Razor Wire. it the normal type of Razor wire you see around prisons and high security establishment .As an effective and economical security barrier, with its high security function, Concertina Razor Wire can prevent most of the intruders for it is hard and dangerous to broken. With the Concertina Razor Wire on the top of other fences, it can greatly improve the safety factor.Razor Mesh has been in use throughout the world at airports, Garden,Playground etc.

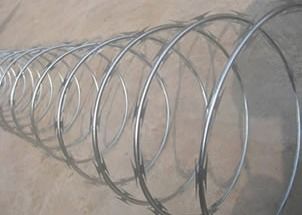

Single Coil Razor Wire
Single coil Concertina Wire is installed without clips, it runs in natural loops on walls.Cost less and can be easily installed.

Crossed Razor Wire
Two pieces of razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.

Flat warp razor wire
Flat warp razor wire is a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with been line razor barbed wire to build a defending wall, or use it alone as a fence.

Razor Wire Fence
Welded razor mesh fence is a new form of razor bared wire mesh for security,it with practicality blade and the feature looks very beautiful.It can be used for guard net of fence ,doors and windows and also can be used in Airport.The specification can be designed as the customers' need.

Specifications:

Reference number	Thickness	Wire Dia	Barb length	Barb width	Barb spacing
BTO-10	0.5±0.05	2.5±0.1	10±1	13±1	26±1
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18	0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28	0.5±0.05	2.5	28	15	45±1
BTO-30	0.5±0.05	2.5	30	18	45±1
CBT-60	0.5±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65	0.5±0.05	2.5±0.1	65±2	21±1	100±2

Specification of concertina razor wire
Outside diameter	No.of loops	Standard length per coil	Type	Notes
450mm	33	7-8M	CBT-60.65	Single coil
500mm	56	12-13m	CBT-60.65	Single coil
700mm	56	13-14m	CBT-60.65	Single coil
960mm	56	14-15m	CBT-60.65	Single coil
450mm	56	8-9m(3 clips)	CBT-10.10.18.22.28.30	Cross type
500mm	56	9-10m(3 clips)	CBT-10.10.18.22.28.30	Cross type
600mm	56	10-11m(3 clips)	CBT-10.10.18.22.28.30	Cross type
600mm	56	8-10m(5clips)	CBT-10.10.18.22.28.30	Cross type
700mm	56	10-12m(5 clips)	CBT-10.10.18.22.28.30	Cross type
800mm	56	11-13m(5 clips)	CBT-10.10.18.22.28.30	Cross type
900mm	56	12-14m(5 clips)	CBT-10.10.18.22.28.30	Cross type
960mm	56	13-15m(5clips)	CBT-10.10.18.22.28.30	Cross type
980mm	56	14-16m(5 clips)	CBT-10.10.18.22.28.30	Cross type
