Hot Dipped Galvanized Concertina Razor Barbed Wire

Large Image : Hot Dipped Galvanized Concertina Razor Barbed Wire

Product Details:

Place of Origin:	HeBei,China
Brand Name:	QiJie
Certification:	Certification ISO2019025
Model Number:	SGS2019025

Payment & Shipping Terms:

Minimum Order Quantity:	1 rolls
Price:	Discuss
Packaging Details:	Wooden carton
Delivery Time:	within 7-30 days
Payment Terms:	30%TT
Supply Ability:	1500 Roll/Rolls per Week

Contact Now

Detailed Product Description

Material:	Galvanized Steel Sheet	Application:	Protecting Mesh, Fence Mesh
Finish:	Hot Dipped Galvanized	Coil Outside Diameter:	960mm
Extended Length:	15m	Name:	Galvanized Razor Barbed Wire
Highlight:	Hot Dipped Galvanized Concertina Razor Wire , Dipped Galvanized Concertina Razor Wire , Concertina Razor Barbed Wire

Hot Dipped Galvanized Concertina Razor Barbed Wire

Hot Dipped Galvanized Concertina Razor Barbed Wire Introduction
Razor barbed wire is composed of blade and core wire. The blade is made of galvanized steel sheet or stainless steel sheet, which is punched into blade shape. And the core wire is high tension galvanized iron wire, or stainless steel wire, plastic barbed wire. Razor barbed wire is easily and expediently installation.
Sorts of the Hot Dipped Galvanized Concertina Razor Barbed Wire:
1). Single loop razor wire (Coin type)
2). Double loop concertina razor wire (Cross type)
3). Flat razor wire (Flat/Ring type)
4). Welded razor wire mesh panel (Welded type)
Cross type (double loops) razor barbed wire is also called concertina barbed wire. The two contiguous razor barbed wires cross and fastened by iron clips. The steel plate is punched and cut into sharp blade strip and enwrapped the mid-carton steel wire (core wire). It's widely used in the airport, prison, railway, etc.

Hot Dipped Galvanized Concertina Razor Barbed Wire Specification
1) Material: Electro galvanized/Hot-dip galvanized/Heavy hot-dip galvanized steel material wire, or Stainless steel material wire,
2) Surface finishing: Galvanized, stainless steel, or PVC coated
3) Blade style: BTO-10, 12, 22, 28, 30, CBT-60, 65 ect.,
4) Loop diameter: 300mm, 350mm, 450mm, 500mm, 600mm, 750mm, 800mm, 980mm, ect. or customized,
5) Cover length per roll: Normally 7m, 8m, 10m, 12m, 15m or customized.

2) Loop Sizes Of Double Loop Razor Barbed Wire/Concertina Razor wire (Cross Type)

Out Diameter	NO. Of Loops	Standard Cover Length	Blade Style	Remark
450mm	56	8-9M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
500mm	56	9-10M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	10-11M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	8-10M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
700mm	56	10-12M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
800mm	56	11-13M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
900mm	56	12-14M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
960mm	56	13-15M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
980mm	56	14-16M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type

Hot Dipped Galvanized Concertina Razor Barbed Wire 3

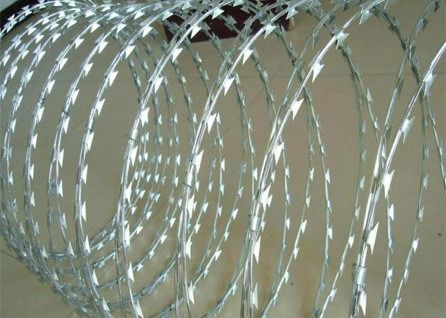

3) The Surface Of The Hot Dipped Galvanized Concetrtina Razor Barbed Wire (Cross Type)
Hot Dipped Galvanized Concertina Razor Barbed Wire 4

4) Features of Hot Dipped Galvanized Concetrtina Razor Barbed Wire
1) The most economical and effective way as perimeter barriers against illegal invasion to restricted areas.
2) Hot-dip galvanized steel or stainless steel materials provide excellent corrosion resistance and can cope with various harsh environments.
3) The high-strength core wire will not be easily damaged by cutting tools.
4) The razor wire blade is very sharp, so its protective performance is very high. Rigid and sharp blade frightens or hurts any person or animal that wants to go through the razor wire fence.
5) Can be deployed very quickly to form a temporary barrier during emergencies.
6) Long service life and almost no maintenance.

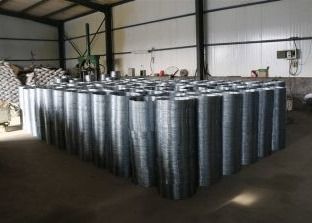

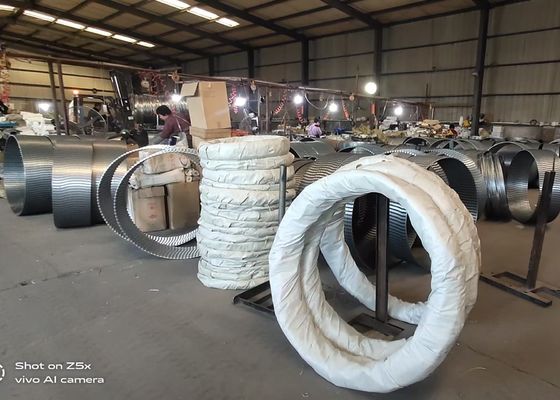

Hot Dipped Galvanized Concetrtina Razor Barbed Wire Workshop & Process
Hot Dipped Galvanized Concertina Razor Barbed Wire 5

Hot Dipped Galvanized Concetrtina Razor Barbed Wire Packing & Delivery
1) Each roll is wrapped with water-proof paper inside and woven bag outside, then 10-50 Rolls compressed in a bundle.
2) Compressed in bundles, and then Packaged on pallets.
3) In box/carton packing.
4) As customer's request.

Hot Dipped Galvanized Concertina Razor Barbed Wire 6

Hot Dipped Galvanized Concertina Razor Barbed Wire 7

Hot Dipped Galvanized Concertina Razor Barbed Wire 8

Hot Dipped Galvanized Concertina Razor Barbed Wire 9
