Stainless Steel 304 Safety Fence Wire Suitable For Prisons

Large Image : Stainless Steel 304 Safety Fence Wire Suitable For Prisons

Product Details:

Place of Origin:	HeBei,China
Brand Name:	QiJie
Certification:	Certification ISO2019025
Model Number:	SGS2019025

Payment & Shipping Terms:

Minimum Order Quantity:	1 rolls
Price:	Discuss

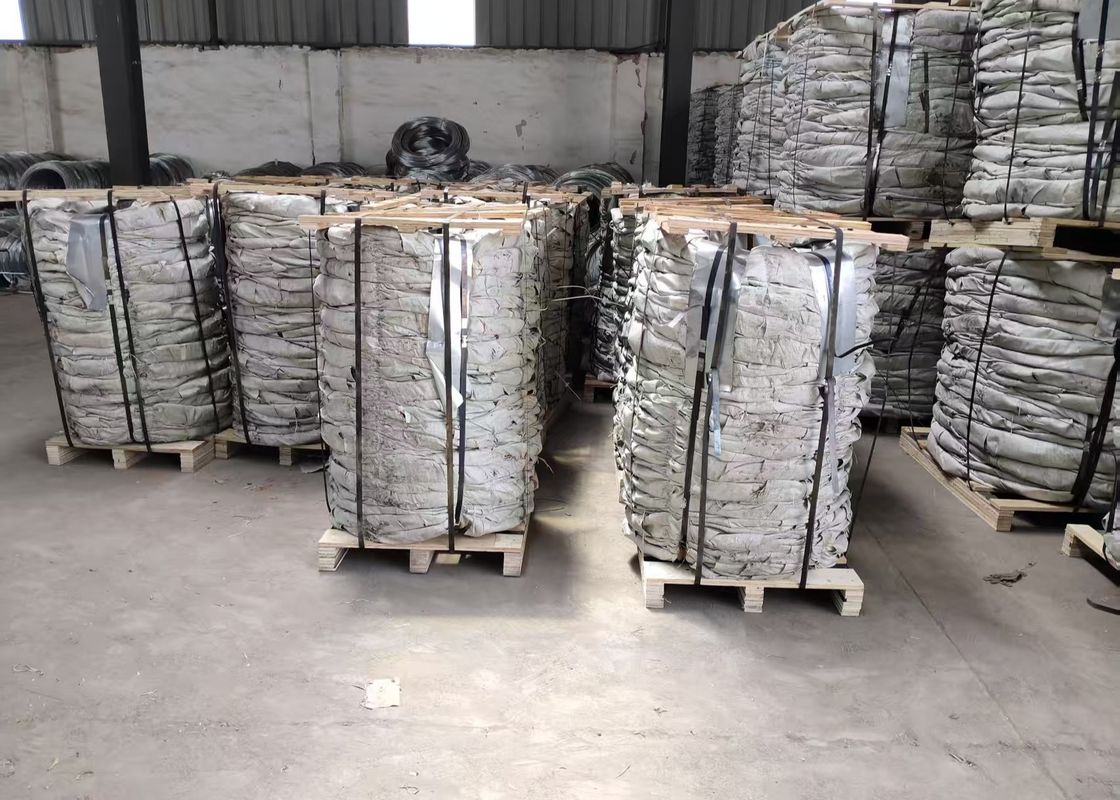

Packaging Details:	Wooden carton
Delivery Time:	within 7-30 days
Payment Terms:	30%TT
Supply Ability:	1500 Roll/Rolls per Week

Contact Now

Detailed Product Description

Material:	Galvanized Steel Sheet	Application:	Protecting Mesh, Fence Mesh
Finish:	Hot Dipped Galvanized	Coil Outside Diameter:	960mm
Extended Length:	15m	Name:	Galvanized Razor Barbed Wire
Highlight:	Prisons Safety Fence Wire , 304 Safety Fence Wire , Stainless Steel 304 Safety Fence Wire

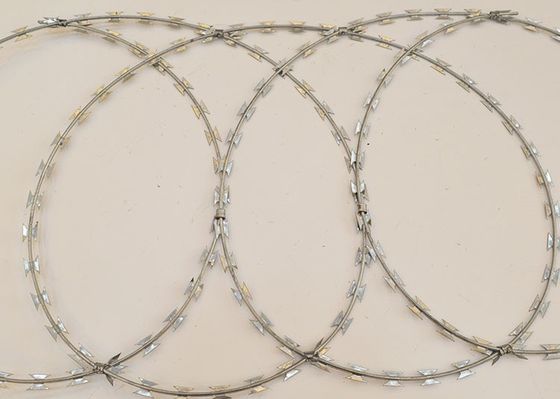

Stainless Steel 304 Safety Fence Wire Suitable for Prisons

Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire.
It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders,
with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult.

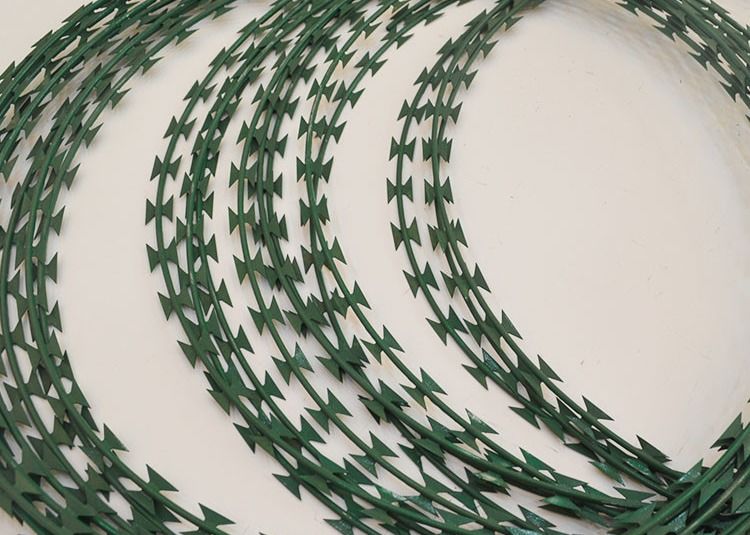

The wire and strip are galvanized or PVC coated to prevent corrosion.

Material:
Galvanized wire and plate
Heavy Zinc coated wire and plate
Stainless steel wire and plate
Process: galvanized steel plate or stainless steel plate punched into certain forms then attached to the steel wire in sharp angle to form the blades.
Barbed Types: BTO-10 BTO-18 BTO-22 CBT-60 CBT-65

Razor barbed wire specification

Blade Type	Thickness	Wire Dia.	Barb Length	Barb Width	Barb Spacing
BTO-10	0.5MM+/-0.05	2.5MM+/-0.1	10MM+/-1	15MM+/-1	26MM+/-1
BTO-12	0.5MM+/-0.05	2.5MM+/-0.1	12MM+/-1	15MM+/-1	26MM+/-1
BTO-18	0.5MM+/-0.05	2.5MM+/-0.1	18MM+/-1	15MM+/-1	38MM+/-1
BTO-22	0.5MM+/-0.05	2.5MM+/-0.1	22MM+/-1	15MM+/-1	38MM+/-1
BTO-28	0.5MM+/-0.05	2.5MM	28MM+/-1	15MM	53MM+/-1
BTO-30	0.5MM+/-0.05	2.5MM	30MM+/-1	21MM	54MM+/-1
CBT-60	0.6MM+/-0.05	2.5MM+/-0.1	60MM+/-2	32MM+/-1	102MM+/-1
CBT-65	0.6MM+/-0.05	2.5MM+/-0.1	65MM+/-2	21MM+/-1	102MM+/-1

Barbed Tape Wire Specification
Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	7-8M	CBT-60.65	Single coil
500mm	56	12-13M	CBT-60.65	Single coil
700mm	56	13-14M	CBT-60.65	Single coil
960mm	56	14-15M	CBT-60.65	Single coil
450mm	56	8-9M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
500mm	56	9-10M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	10-11M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	8-10M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
700mm	56	10-12M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
800mm	56	11-13M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
900mm	56	12-14M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
960mm	56	13-15M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
980mm	56	14-16M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
