Bto-22 Hot Dipped Galvanized Razor Wire Fence

Bto-22 Hot Dipped Galvanized Razor Wire Fence

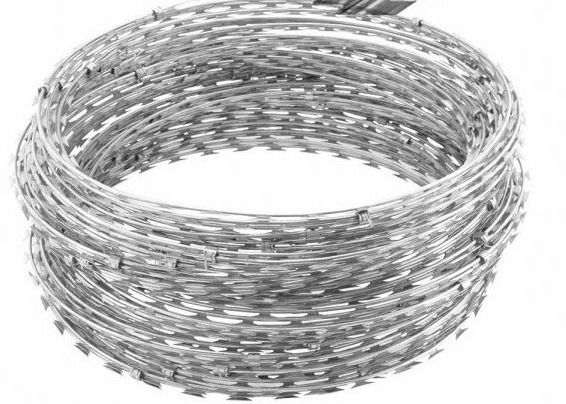

Large Image :  Bto-22 Hot Dipped Galvanized Razor Wire Fence

Product Details:
Place of Origin: China
Brand Name: Qijie
Certification: ISO9001
Model Number: QJ-R001
Payment & Shipping Terms:
Minimum Order Quantity: 100 rolls
Price: discuss
Packaging Details: Woven bag outside,carton box etc
Delivery Time: 15-20 days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 100 tons per week
Detailed Product Description
Material: Galvanized Steel Wire Application: Security Fence
Type: Expanded Mesh Color: Silver
Usage: Construction Feature: Corrosion Resistance,durable,Easily Assembled
Surface Treatment: Hot Dipped Galvanized Size: As Your Requirement
Highlight:

Hot Dipped Galvanized Razor Wire Fence

,

Bto-22 Razor Wire Fence

,

Dipped Galvanized Razor Wire Fence

Bto-22 Hot Dipped Galvanized Razor Wire Fence



Concertina Razor Wire, also called Razor Wire. it the normal type of Razor wire you see around prisons and high security establishment .As an effective and economical security barrier, with its high security function, Concertina Razor Wire can prevent most of the intruders for it is hard and dangerous to broken. With the Concertina Razor Wire on the top of other fences, it can greatly improve the safety factor.Razor Mesh has been in use throughout the world at airports, Garden,Playground etc.

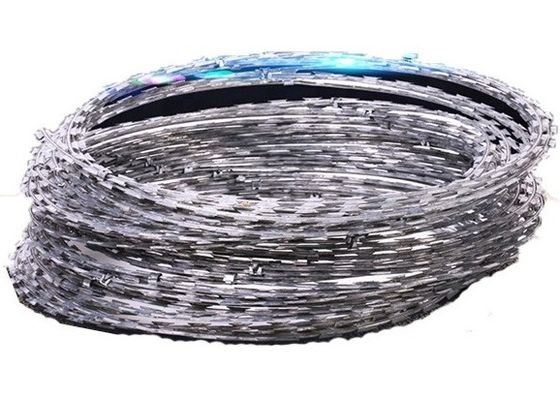

Single Coil Razor Wire
Single coil Concertina Wire is installed without clips, it runs in natural loops on walls.Cost less and can be easily installed.

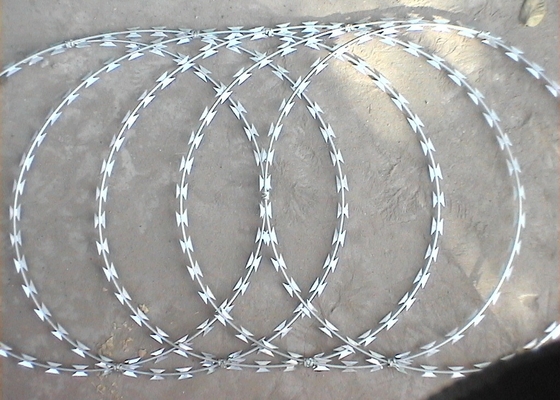

Crossed Razor Wire
Two pieces of razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.

Flat warp razor wire
Flat warp razor wire is a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with been line razor barbed wire to build a defending wall, or use it alone as a fence.

Razor Wire Fence
Welded razor mesh fence is a new form of razor bared wire mesh for security,it with practicality blade and the feature looks very beautiful.It can be used for guard net of fence ,doors and windows and also can be used in Airport.The specification can be designed as the customers' need.



Bto-22 Hot Dipped Galvanized Razor Wire Fence 0

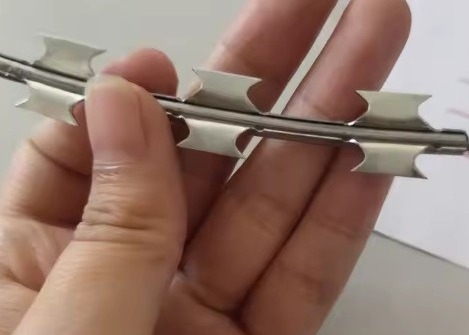

Reference Number Thickness Wire Dia. Blade Length Blade Width Blade Spacing
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-15 0.5±0.05 2.5±0.1 15±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-30 0.5±0.05 2.5±0.1 30±1 18±1 45±1
CBT-25 0.5±0.05 2.5±0.1 25±1 16±1 40±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2

Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.430/304/316
Standard packages products are shown in the tables above, special specifications are available on request.





Concertina Razor Wire (Standard Use)
Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13M CBT-60.65 Single coil
700mm 56 13-14M CBT-60.65 Single coil
960mm 56 14-15M CBT-60.65 Single coil
450mm 56 8-9M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
500mm 56 9-10M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 8-10M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
700mm 56 10-12M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
800mm 56 11-13M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
900mm 56 12-14M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
960mm 56 13-15M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type



Specification of razor blade wire:

1,Normal hot dipped galvanized razor wire(40-60g)

2,Heavily zinc coated razor wire (70-270g)

3,Stainless steel 304/316 grades razor wire

Clips of concertina wire: 3clips, 5clips or without clips

Coil Diameter of concertina wire: 300mm 450mm 500mm 600mm 700mm 800mm 950mm 1000mm



Package of razor wires:

1,waterproof paper inside,woven bag outside,then 50rolls/bundle or as required

2,In bulk,then packing by wooden pallet or in bulk



Usage

* Government place

* Factory land

* School playground

* Public buildings

* Car parks

* Business parks and retail premises

* Other places

Bto-22 Hot Dipped Galvanized Razor Wire Fence 1
