BTO-16 Concertina Razor Barbed Wire 1100mm 7 Clips 35kg /Roll 20-25m
Products that Exceed the Standard
Our most recent shipment, a 40′ container, a total of 770 rolls, 25,795 kg, was shipped to Ukraine, producing a product that exceeded the standard.
Weight per roll: 33.5kg
Coil diameter: 1100mm
Material: Hot-dip galvanized steel
Zinc coating thickness on the blades: 28.5um
Zinc coating thickness on the core wire: 24.6um

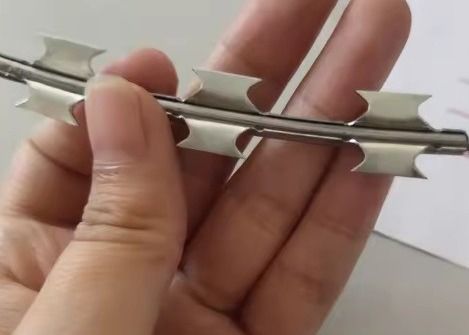

Blade length: 18.04mm
Blade width: 19.42mm
Blade thickness: 0.5mm
Core wire diameter: 2.82mm
Middle strip width: 7.4mm

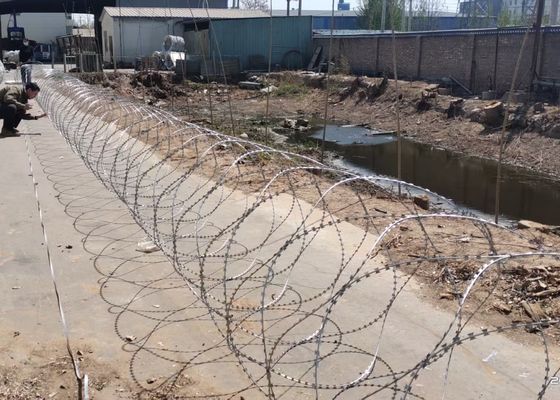

7 Steps for Easy and Quick Razor Wire Installation
Before installing razor wire rolls, always wear your work cloth and safety grooves to avoid your hand being cut or hurt by razor blades.
Step 1
Measure the length of the fence and calculate the number of razor wire rolls used. This depends on the type of razor blades. As the type of razor blade varies, the spacing between loops varies as well, therefore, the installation spacing of razor wire also varies accordingly.
Step 2
Measure the length of the fence and calculate the number of razor wire rolls used. This depends on the type of razor blades. As the type of razor blade varies, the spacing between loops varies as well, therefore, the installation spacing of razor wire also varies accordingly.
Step 3
When all steel wires (or barbed wires) are installed, tension all support wires with a wire tensioner and make sure these wires are parallel to the base of the fence to support and fix razor wire.
Step 4
Place the razor wire roll in the starting point, secure razor wire loops to the Y posts and tension wires with tie wires or clips.
Step 5
Distribute razor wire loops evenly at an interval of 25 cm (or preset loop spacing) from the starting point. When the first roll is installed to the end, connect the tail end of the first roll with the beginning point of the second roll with tie wires or clips, and then continue the installation.
Step 6
When all razor wire rolls are evenly distributed, secure the connections between razor wires, tension wires and the fence with tie wires to ensure that the razor wires are evenly distributed and firmly secured over the fence.
Step 7
Razor wire installation is finished. Galvanized steel wires are recommended for tie wires as it has excellent corrosion resistance and more durable.
