Chinese Stainless Steel Wire Rods 1020 1050 1060 316L 304L Coils Welding Processing Service From Trusted

Chinese Stainless Steel Wire Rods 1020 1050 1060 316L 304L Coils Welding Processing Service From Trusted
Chinese Stainless Steel Wire Rods 1020 1050 1060 316L 304L Coils Welding Processing Service From Trusted Chinese Stainless Steel Wire Rods 1020 1050 1060 316L 304L Coils Welding Processing Service From Trusted

Large Image :  Chinese Stainless Steel Wire Rods 1020 1050 1060 316L 304L Coils Welding Processing Service From Trusted

Product Details:
Place of Origin: Hebei, China
Brand Name: QIJIE
Certification: CE,SGS,ISO
Model Number: SW-004
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Packaging Details: wooden case
Delivery Time: 10-15 working days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 30000 kg/month
Contact Now
Detailed Product Description
Material: Stainless Steel Wire Wire Diameter: 0.17mm
Highlight:

Stainless steel wire rods 1020

,

316L stainless steel welding coils

,

Galvanized binding wire 304L

Chinese Stainless Steel Wire Rods 1020 1050 1060 316L 304L Coils Welding Processing Service From Trusted​





Nichrome alloy wire includes pure nickel, NiCr alloy, Fe-Cr-Al alloy and copper nickel alloy.
Nickel chrome alloys: Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni35Cr20, Ni90Cr10,Ni30Cr20, pure nickel Ni200 and Ni201
FeCrAl alloy: 0Cr25Al5, 0Cr23Al5, 0Cr21Al4, 0Cr27Al7Mo2, 0Cr21Al6Nb, 0Cr21Al6.
Copper nickel alloy: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi23, CuNi30, CuNi44, Constantan,CuMn12Ni
Our Nichrome alloy are in the form of wire, coil, ribbon, strip, foil
Nichrome wire sizes are:
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm
Nichrome Grade: Nichrome 8020,Ni70Cr30,Ni80Cr20, Ni60Cr15, Ni35Cr20, Ni30Cr20
NiCr 80/20 also called Chromel A, Cr20Ni80, N8, Nichrome V, HAI - NiCr 80, Tophet A, Resistohm 80, Cronix 80, Protoloy, Alloy A,
MWS-650, Stablohm 650, NCHW1
nicr8020 characteristic
Chemical Content %: 80.00 Nickel, 20.00 Chrome
Max continuous service temperature: 1200ºC
Resisivity: 1.09 mm2Ω /m
Density: 8.4g/cm3
Thermal conductivity: 60.3kj/mhc
Coefficient of thermal expansion: 18*10-6/c
Melting point: 1400ºC
Elongation: Min 20%
Alloy Nomenclature Performance
Ni80Cr20
Ni70Cr30
Ni60Cr15
Ni35Cr20
Ni30Cr20
Main Chemical composition
Ni
Rest
Rest
55.0-61.0
34.0-37.0
30.0-34.0
Cr
20.0-23.0
28.0-31.0
15.0-18.0
18.0-21.0
18.0-21.0
Fe
≤1.0
≤1.0
Rest
Rest
Rest
Max. continuous service temp. of element(ºC)
1200
1250
1150
1100
1100
Resistivity at 20ºC (μΩ·m)
1.09
1.18
1.12
1.0
1.04
Density(g/cm3)
8.40
8.10
8.20
7.90
7.90
Thermal conductivity (KJ/m·h·ºC)
60.3
45.2
45.2
43.8
43.8
Coefficient of lines expansion(α×10-6/ºC)
18.0
17.0
17.0
19.0
19.0
Melting point approx.( ºC)
1400
1380
1390
1390
1390
Elongation at rupture(%)
>20
>20
>20
>20
>20
Micrographic structure
austenite
austenite
austenite
austenite
austenite
Magnetic properties
nonmagnetic
nonmagnetic
Weak magnetic
Weak magnetic
Weak magnetic
The application areas of nickel-chromium alloy strips include: Petrochemical industry: used to manufacture pipes, valves, pumps and other components in petrochemical equipment, as well as catalyst carriers for petrochemicals. Aerospace industry: used to manufacture high-temperature components such as engines, turbine blades, and combustion chambers. Chemical industry: used to manufacture reaction kettles, heat exchangers and other components in chemical equipment. Devices: used to manufacture devices such as artificial joints and dental implants. Other fields: such as nuclear industry, electronics industry, etc.

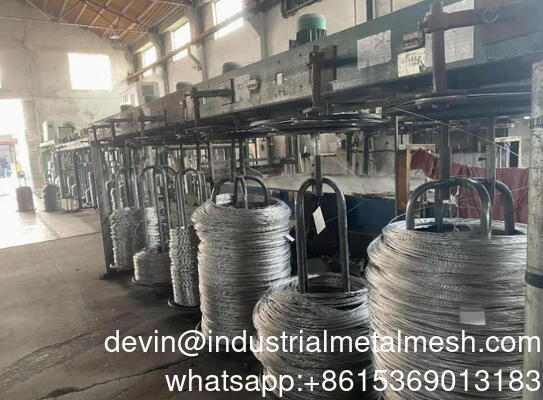

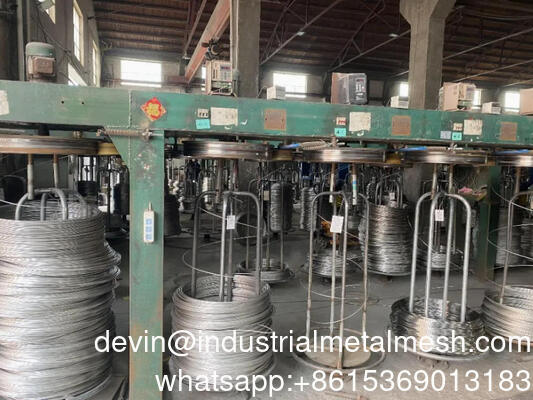

Detailed Photos

NiCr 80:20 - Industrial furnaces (upto 1200°C), electric cooking equipment, precision resistors.
NiCr 70:30 - Industrial furnaces (upto 1230°C) with alternating oxidizing/reducing atmosphere, precision resistors.
NiCr 60:15 - Industrial furnaces (upto 1100°C), electrically heated equipment, high-resistance and potentiometer resistors.
NiCr 40:20 - Domestic heating appliances (upto 1050°C), furnaces in carburising or semi-reducing atmosphere.
NiCr 30:20/ NiCr 20:25 - Industrial furnaces (upto 1050°C), heating elements of cooking equipment.





Chinese Stainless Steel Wire Rods 1020 1050 1060 316L 304L Coils Welding Processing Service From Trusted 0



Chinese Stainless Steel Wire Rods 1020 1050 1060 316L 304L Coils Welding Processing Service From Trusted 1
