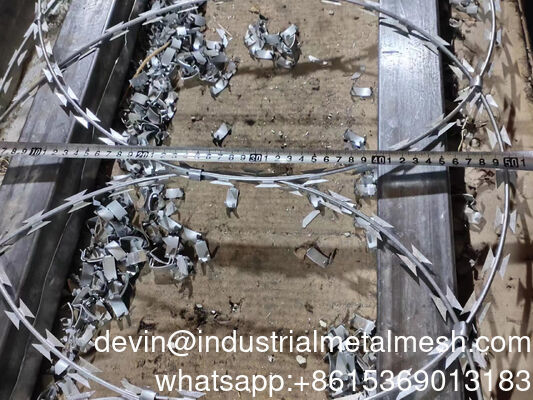

When you need to get serious about security, Concertina Razor Wire is the best solution. It is relatively inexpensive, but viciously effective. Concertina razor Wire around the perimeter is enough to deter any wouldbe vandal, robber or saboteur. Razor Wire is made of a corrosion resistant galvanized steel cutting ribbon wrapped around a core of galvanized spring steel wire. It's impossible to cut without highly specialized tools, and even then it's a slow, dangerous job. Concertina Razor Wire is a long lasting and very effective barrier, known and trusted by security professionals.
|
|
|
|
|
|
|
|
Blade
Style
|
Blade
thickness
|
Wire
thickness
|
Blade length
|
Blade width
|
Blade
spacing
|
|
BTO-10
|
0.5±0.05
|
2.5±0.1
|
10±1
|
13±1
|
26±1
|
|
BTO-12
|
0.5±0.05
|
2.5±0.1
|
12±1
|
15±1
|
26±1
|
|
BTO-18
|
0.5±0.05
|
2.5±0.1
|
18±1
|
15±1
|
33±1
|
|
BTO-22
|
0.5±0.05
|
2.5±0.1
|
22±1
|
15±1
|
34±1
|
|
BTO-28
|
0.5±0.05
|
2.5
|
28
|
15
|
45±1
|
|
BTO-30
|
0.5±0.05
|
2.5
|
30
|
18
|
45±1
|
|
CBT-60
|
0.6±0.05
|
2.5±0.1
|
60±2
|
32±1
|
100±2
|
|
CBT-65
|
0.6±0.05
|
2.5±0.1
|
65±2
|
21±1
|
100±2
|
Application of concertina razor barbed wire
Razor Barbed Wire is widely used in airport , prison, government, bank, and also in living wall, personal house, villatic wall, window, autobahn, railway and border of the fence.
Packing of concertina razor barbed wire
compression rolls, water-proof paper inside, woven bag outside or in carton
Weave characteristics of concertina razor barbed wire
twist and weave, fastness ,beautiful; galvanizing after weaving, galvanizing before weaving. It is divided to electrical galvanized ,hot - dipped galvanized, plas-tic coating, stainless steel, etc.
Advantages of concertina razor barbed wire
Razor barbed wire mesh is a new kind of protective fencing with such advantages as beautiful appearance,economical cost and practicality.
Welded razor mesh fence:
The razor wire can welded to mesh panel with a frame as the fence installed on the prison wall, the hole shape can be rectangle and diamond.
1>Square Hole Size:100mmx100mm,150mmx150mm,200mmx200mm.
2>Diamond Hole Size:75mmx150mm,100mmx200mm,150mmx300mm.
| Hole shape |
Mesh width |
Suited blade specifications |
| Square hole, diamond |
1.2m ~ 2.4m |
BTO-10.12.22.28.30 |
| Square hole, diamond |
1.2m ~ 2.4m |
BTO-10.12.22.28.30 |
| Square hole, diamond |
1.2m ~ 2.4m |
BTO-10.12.22.28.30 |
| Square hole, diamond |
1.2m ~ 2.4m |
BTO-10.12.22.28.30 |
