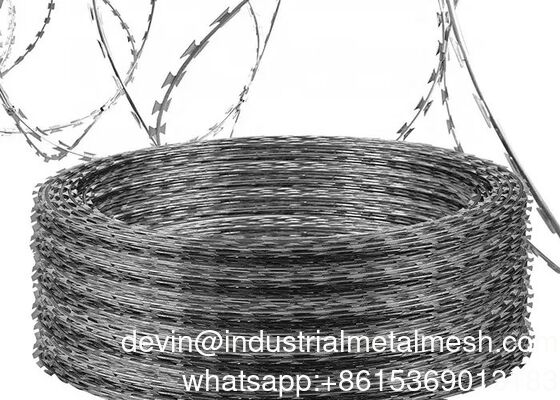

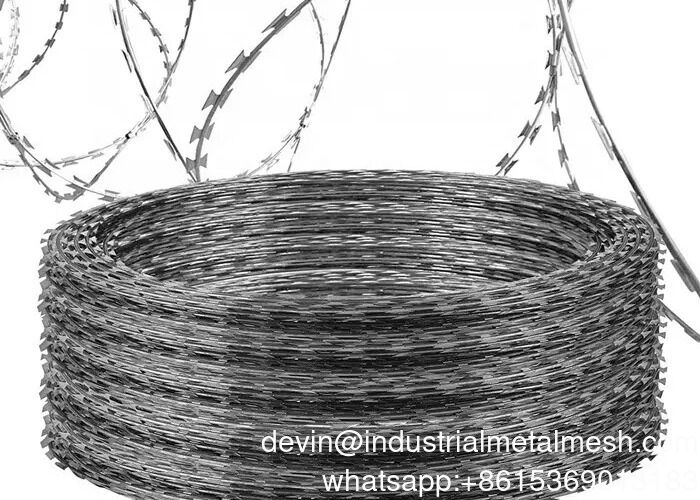

Galvanized Razor Barbed Wire Concertina Wire with Fence for Protection

Large Image : Galvanized Razor Barbed Wire Concertina Wire with Fence for Protection

Product Details:

Place of Origin:	HeBei,China
Brand Name:	QiJie
Certification:	qijie
Model Number:	qijie

Payment & Shipping Terms:

Minimum Order Quantity:	1 rolls
Price:	Discuss
Packaging Details:	Wooden carton
Delivery Time:	within 7-30 days
Payment Terms:	30%TT in advance,Balance before loading
Supply Ability:	1500 Roll/Rolls per Week

Contact Now

Detailed Product Description

Material:	Stainless Steel Wire, 316, 304, Plain Steel Galvanized	Technique:	Welded Mesh
Application:	Screen, Protecting Mesh	Hole Shape:	Square Hole, Rectangule Hole
Normal Blade Type:	BTO-22, BTO-30, CBT-60, CBT-65	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	galvanized razor barbed wire , concertina wire with fence , protective razor wire fence

Galvanized Razor Barbed Wire Concertina Wire with Fence for Protection

Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire.
It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders,
with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult.
The wire and strip are galvanized or PVC coated to prevent corrosion.
Material:
Galvanized wire and plate
Heavy Zinc coated wire and plate
Stainless steel wire and plate
Process: galvanized steel plate or stainless steel plate punched into certain forms then attached to the steel wire in sharp angle to form the blades.
Barbed Types: BTO-10 BTO-16 BTO-18 BTO-22 CBT-60 CBT-65

Model	Plate Thickness mm	Core wire Diameter mm	Barb Length mm	Barb Width Mm	Barb Spacing mm
BTO-10	0 .5 +- 0.05 mm	2.5mm	10mm	13mm	26mm
BTO-12	0 .5 +- 0.05 mm	2.5mm	12mm	15mm	26mm
BTO-18	0 .5 +- 0.05 mm	2.5mm	18mm	15mm	38mm
BTO-22	0 .5 +- 0.05 mm	2.5mm	22mm	15mm	38mm
BTO-28	0 .5 +- 0.05 mm	2.5mm	28mm	15mm	53mm
BTO-30	0 .5 +- 0.05 mm	2.5mm	30mm	21mm	54mm
BTO-60	0 .6 +- 0.05 mm	2.5mm	60mm	32mm	102mm
BOT-65	0 .3 +- 0.05 mm	2.5mm	65mm	22mm	102mm

Coil OD (mm)	NO. of Loops	NO. of Clips	The Utmost Length (m)	Barb Type	Notes
450 mm	33	-	7-8 m	CBT60 CBT65	Single Coil
500 mm	56	-	12-13 m	CBT60 CBT65	Single Coil
700 mm	56	-	13-14 m	CBT60 CBT65	Single Coil
960 mm	56	-	14-15 m	CBT60 CBT65	Single Coil
450 mm	56	3 clips	8-9 m	BTO12 18 22 28 30	Cross Type
500 mm	56	3 clips	9-10 m	BTO12 18 22 28 30	Cross Type
600 mm	56	3 clips	10-11 m	BTO12 18 22 28 30	Cross Type
600 mm	56	5 clips	8-10 m	BTO12 18 22 28 30	Cross Type
700 mm	56	5 clips	10-12 m	BTO12 18 22 28 30	Cross Type
800 mm	56	5 clips	11-13 m	BTO12 18 22 28 30	Cross Type
900 mm	56	5 clips	12-14 m	BTO12 18 22 28 30	Cross Type
960 mm	56	5 clips	13-15 m	BTO12 18 22 28 30	Cross Type
980 mm	56	5 clips	14-16m	BTO12 18 22 28 30	Cross Type

Razor barbed wire packages:
1. Waterproof paper and woven bag, and then tied by steel strip.
2. Carton (Mostly for stainless steel concertina wire).
3. Fumigation Wooden Pallet.
4. Customized.

Application:

When you need to get serious about security, Concertina Razor Wire is the best solution. It is relatively inexpensive, but viciously effective. Concertina razor Wire around the perimeter is enough to deter any wouldbe vandal, robber or saboteur. Razor Wire is made of a corrosion resistant galvanized steel cutting ribbon wrapped around a core of galvanized spring steel wire. It's impossible to cut without highly specialized tools, and even then it's a slow, dangerous job. Concertina Razor Wire is a long lasting and very effective barrier, known and trusted by security professionals.

Galvanized Razor Barbed Wire Concertina Wire with Fence for Protection 0
Application of concertina razor barbed wire
Razor Barbed Wire is widely used in airport , prison, government, bank, and also in living wall, personal house, villatic wall, window, autobahn, railway and border of the fence.

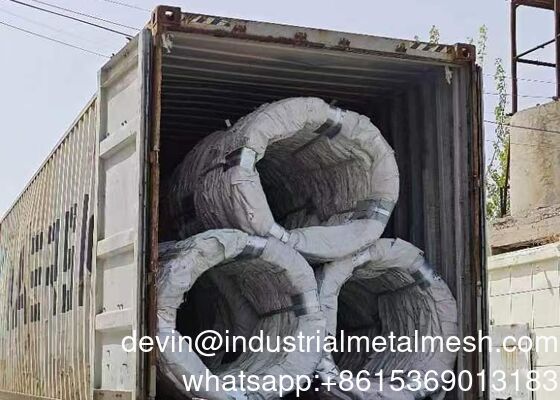

Packing of concertina razor barbed wire
compression rolls, water-proof paper inside, woven bag outside or in carton

Galvanized Razor Barbed Wire Concertina Wire with Fence for Protection 1
